13 Wall & Ceiling LED > Outdoor Wall Lights
67492P/AN/W

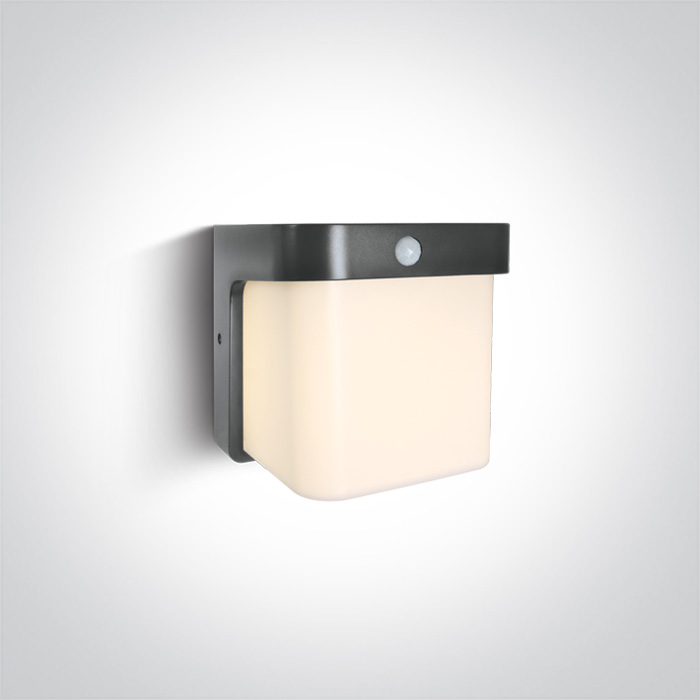

12W LED Wall light with movement sensor.
Working time-delay: 5s, 30s, 1Min,3 Min,5 Min, 8 Min.
Ambient light : <10LUX~2000LUX
Distance: 8m
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Working time-delay: 5s, 30s, 1Min,3 Min,5 Min, 8 Min.
Ambient light : <10LUX~2000LUX
Distance: 8m
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
Outdoor Wall Lights
Order Code
67492P/AN/W
Colour
Anthracite
Material
Plastic
Diffuser Material
PC
Shape
Rectangular
Length
170mm
Width
140mm
Height
170mm
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
12W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
38V
Power (Watts)
11,6W
IP Rating
IP54
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
6-12W
Power Factor
0,5
Constant Current
Yes
300mA
20-40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
600lm
Light Efficiency
50lm/W
CRI
80

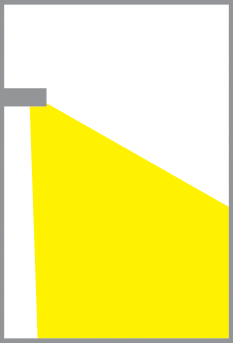

Illumination Diagram
Packing Info
Box Weight
0.875kg
Pcs/Carton
12
Barcode
5291889066187
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
