New 2025 Edition 3 > Wall & Ceiling LED
67472A/AN/V

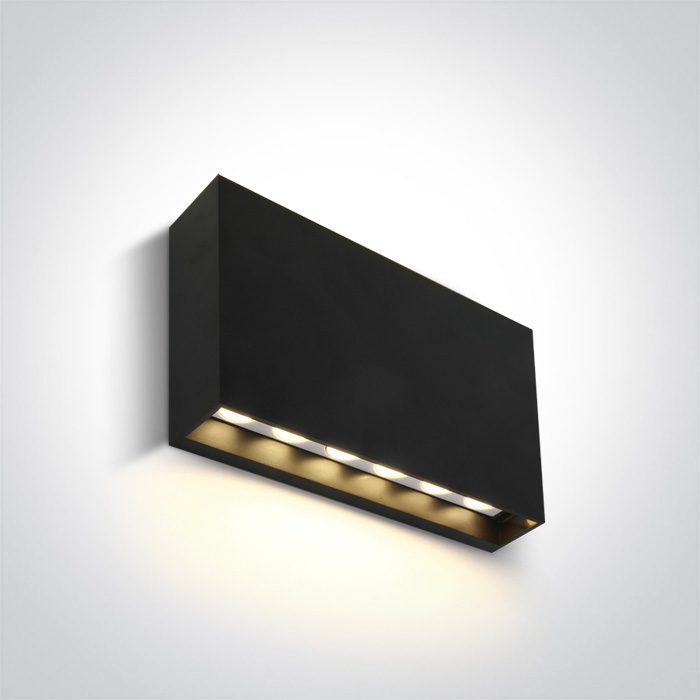

6W CCT Variable SMD LED wall light .
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 3
Family
Wall & Ceiling LED
Order Code
67472A/AN/V
Colour
Anthracite
Material
ABS
Diffuser Material
PC
Shape
Rectangular
Length
200mm
Width
39mm
Height
125mm
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
6W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Light Source
LED built in
LED Type
SMD
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Constant Current
Yes
Illumination Data
Colour Code
2700K-3300K-4000K
Lumen Output
500lm
Light Efficiency
83,33lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
0.490kg
Pcs/Carton
20
Barcode
5291889083870
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
