13 Wall & Ceiling LED > The Backlight Wall Range Aluminium

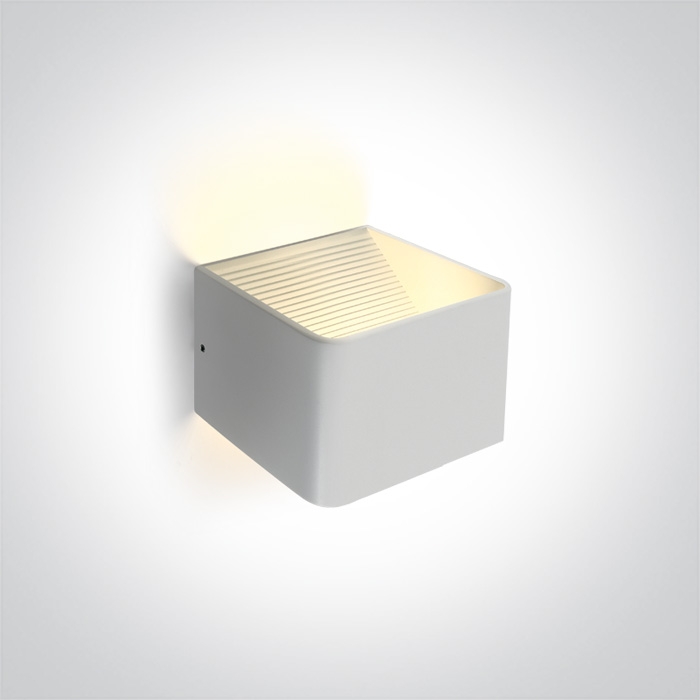

67466A/W/W
6W LED wall surface light IP20.
Complete 300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete 300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
The Backlight Wall Range Aluminium
Order Code
67466A/W/W
Colour
White
Material
Aluminium
Shape
Rectangular
Length
100mm
Width
100mm
Height
80mm
Surface Wall
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
6W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
18V
Safety Class
Power (Watts)
5,4W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Edison
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
3,6-6W
Power Factor
0,5
Constant Current
Yes
300mA
12-20V
IP Rating
IP20
Safety Class
Ambient Temp
0
Operating Temp
0
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
400lm
Light Efficiency
66,67lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
0.541kg
Pcs/Carton
12
Barcode
5291889062806
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
