19 Garden & Underwater > LED Garden Path Lights Aluminium
67460A/AN/W

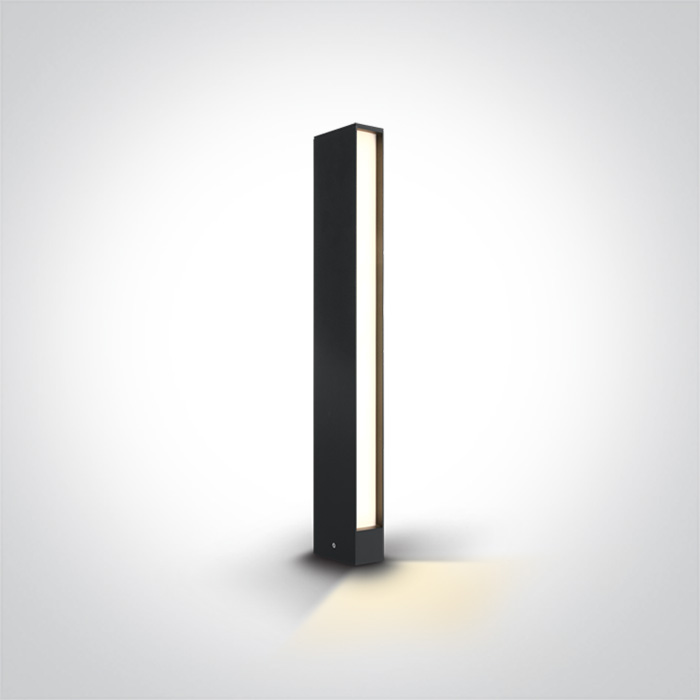

8W LED Bollard, IP54 for Garden illumination.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
19 Garden & Underwater
Family
LED Garden Path Lights Aluminium
Order Code
67460A/AN/W
Colour
Anthracite
Material
Aluminium
Diffuser Material
PC
Shape
Rectangular
Length
100mm
Width
50mm
Height
600mm
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
No
IK Rating
10
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
18V
Power (Watts)
6,3W
IP Rating
IP54
Light Source
LED built in
LED Type
SMD 2835
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
4,2-6,3W
Power Factor
0,9
Constant Current
Yes
350mA
12-18V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
55°C
Operating Temp
85°C
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
640lm
Light Efficiency
80lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
2.550kg
Pcs/Carton
4
Barcode
5291889059714
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
