14 Plafo > Decorative Plafo
67452/B/W

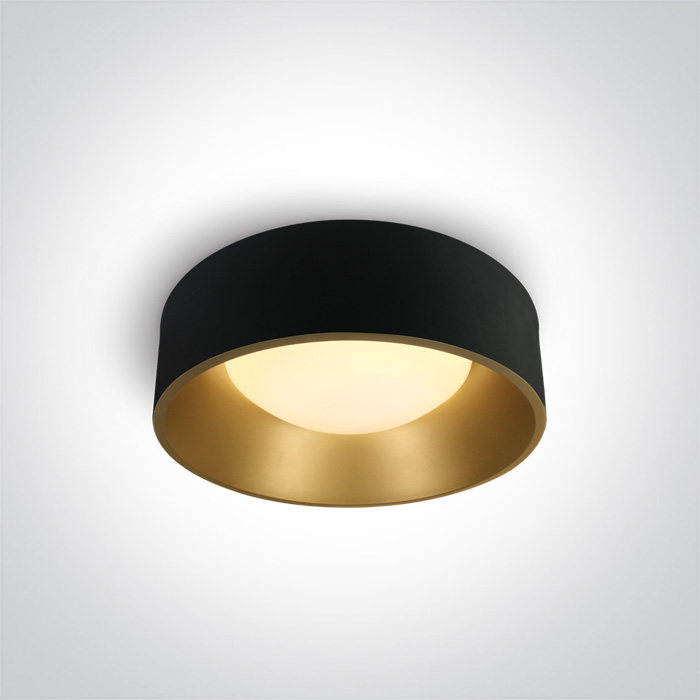

30W LED Plafo , IP20 suitable for residential and commercial application .
Complete with 800mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 800mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
14 Plafo
Family
Decorative Plafo
Order Code
67452/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
142mm
Diameter
480mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
30W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
800mA
Voltage
33V
Power (Watts)
28W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 3030
LED Brand
Bridgelux
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
27,2-31,2W
Power Factor
0,9
Constant Current
Yes
800mA
34-39V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
0
Operating Temp
0
Illumination Data
Colour Temperature
3000K
Lumen Output
2400lm
Light Efficiency
80lm/W
CRI
90
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
2.600kg
Pcs/Carton
1
Barcode
5291889063940
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
