13 Wall & Ceiling LED > Wall Adjustable Beams
67440/W/W

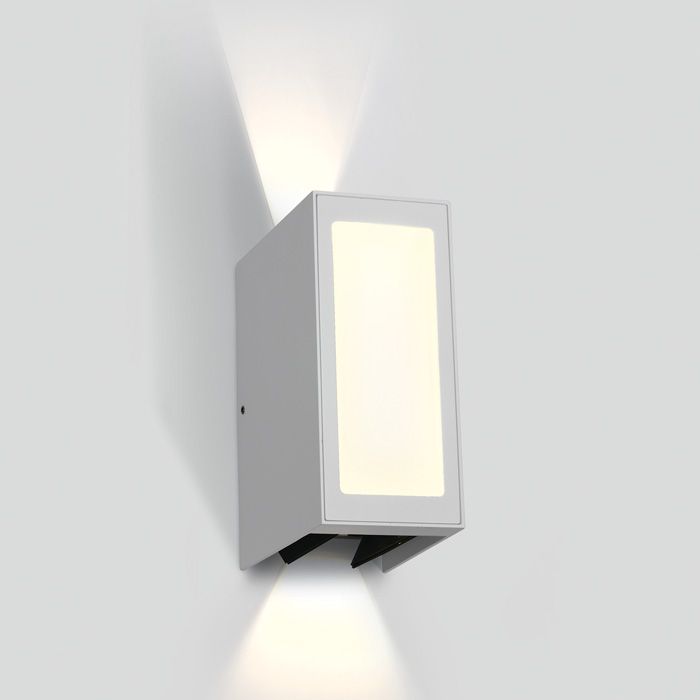

9W LED Outdoor Wall Light with adjustable beam, IP54.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
Wall Adjustable Beams
Order Code
67440/W/W
Colour
White
Material
Die Cast
Shape
Rectangular
Length
170mm
Width
80mm
Height
135mm
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
9W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
24V
Safety Class
Power (Watts)
8,4W
IP Rating
IP54
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Osram
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
5,3-9W
Power Factor
0,5
Constant Current
Yes
350mA
15-26V
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
600lm
Light Efficiency
66,67lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
14,5cm
Box Width
9,5cm
Box Height
19cm
Box Weight
1.412kg
Pcs/Carton
8
Barcode
5291889056386
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
