12 Wall & Ceiling LED > Wall Adjustable Beams
67440A/AN/W

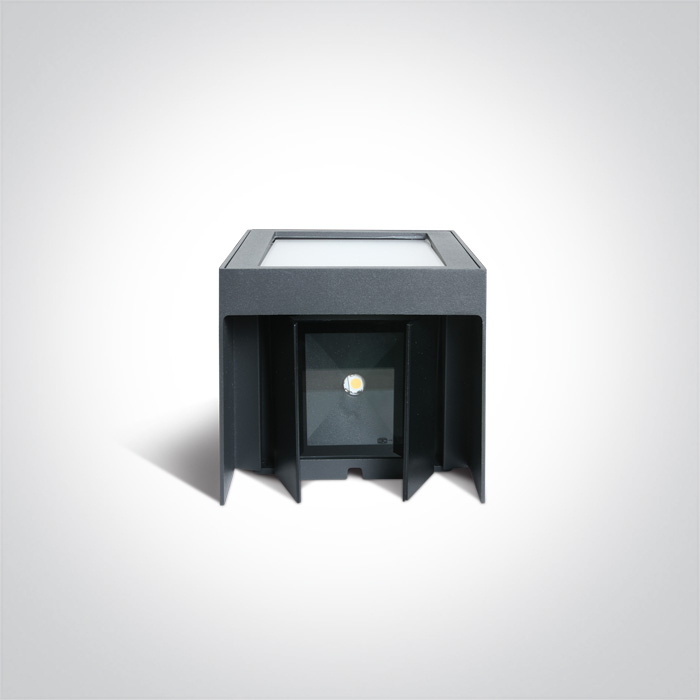

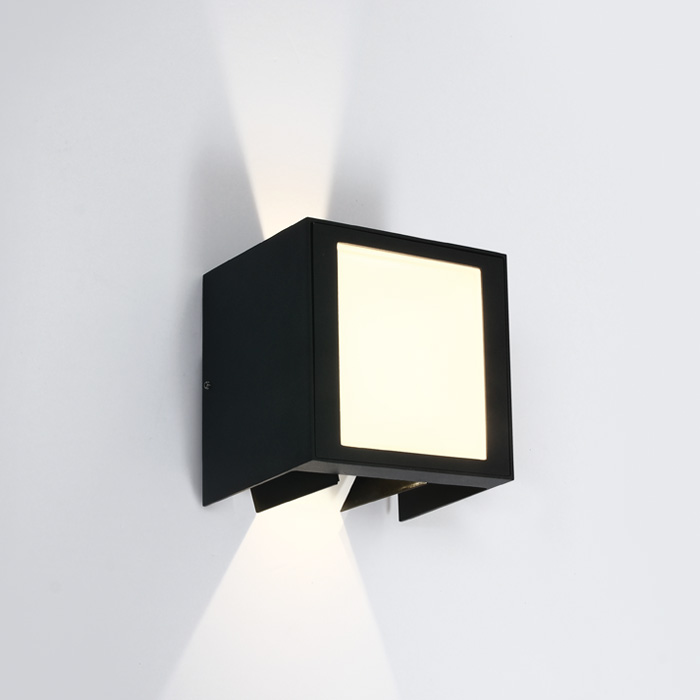

11W LED Outdoor Wall with adjustable beam, IP54.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
Wall Adjustable Beams
Order Code
67440A/AN/W
Colour
Anthracite
Material
Die Cast
Diffuser Material
Glass
Shape
Rectangular
Length
140mm
Width
125mm
Height
145mm
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
11W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
26V
Safety Class
Power (Watts)
9,1W
IP Rating
IP54
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Edison
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
5,3-9W
Power Factor
0,5
Constant Current
Yes
350mA
15-26V
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
700lm
Light Efficiency
63,64lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
15,5cm
Box Width
15,5cm
Box Height
14cm
Box Weight
1.562kg
Pcs/Carton
8
Barcode
5291889058182
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
