12 Wall & Ceiling LED > Outdoor Dark Lights
67430A/W/W

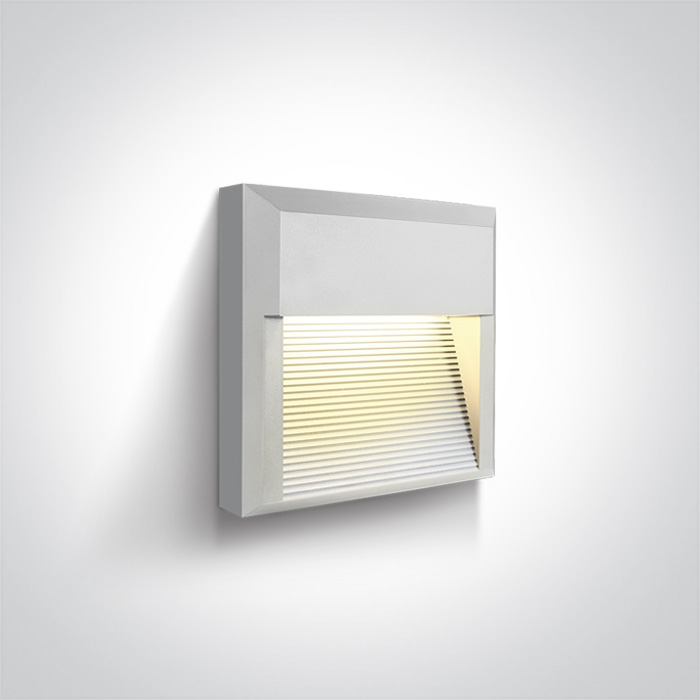

8W LED wall light, IP65, ideal for both indoor and outdoor
installation.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
Outdoor Dark Lights
Order Code
67430A/W/W
Colour
White
Material
ABS
Diffuser Material
PC
Shape
Rectangular
Length
197mm
Width
197mm
Height
52mm
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
20V
Power (Watts)
6W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
LED Number
42
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
3,6-6W
Power Factor
0,5
Constant Current
Yes
300mA
12-20V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
350lm
Light Efficiency
43,75lm/W
CRI
80
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
21cm
Box Width
21cm
Box Height
6,5cm
Box Weight
0.685kg
Pcs/Carton
20
Barcode
5291889055372
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
