New 2025 Edition 3 > Wall & Ceiling LED

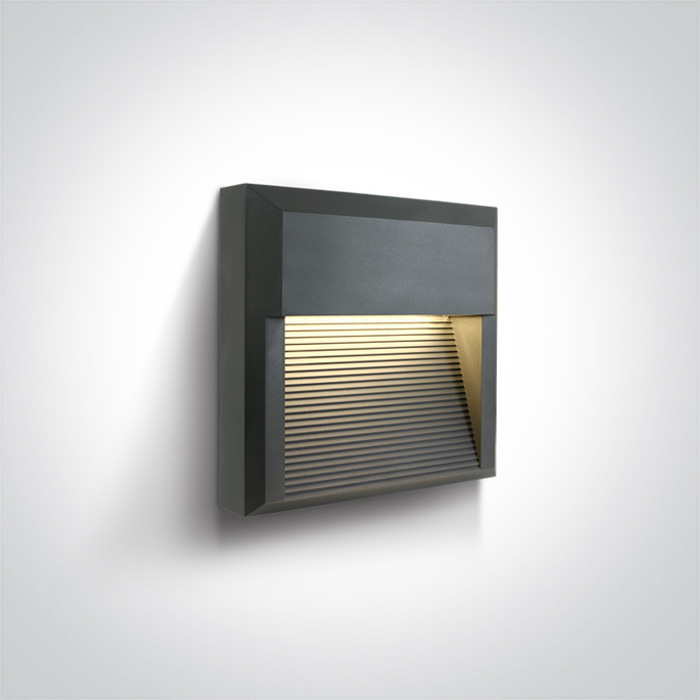

67430A/AN/V
8W CCT Variable LED wall light, IP65.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 3
Family
Wall & Ceiling LED
Order Code
67430A/AN/V
Colour
Anthracite
Material
ABS
Diffuser Material
PC
Shape
Rectangular
Length
197mm
Width
197mm
Height
52mm
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Power (Watts)
8W
Light Source
LED built in
LED Type
SMD
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Constant Current
Yes
Dimmable
No
Illumination Data
Colour Code
2700K-3300K-4000K
Lumen Output
400lm
Light Efficiency
50lm/W
CRI
80
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.685kg
Pcs/Carton
20
Barcode
5291889083856
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
