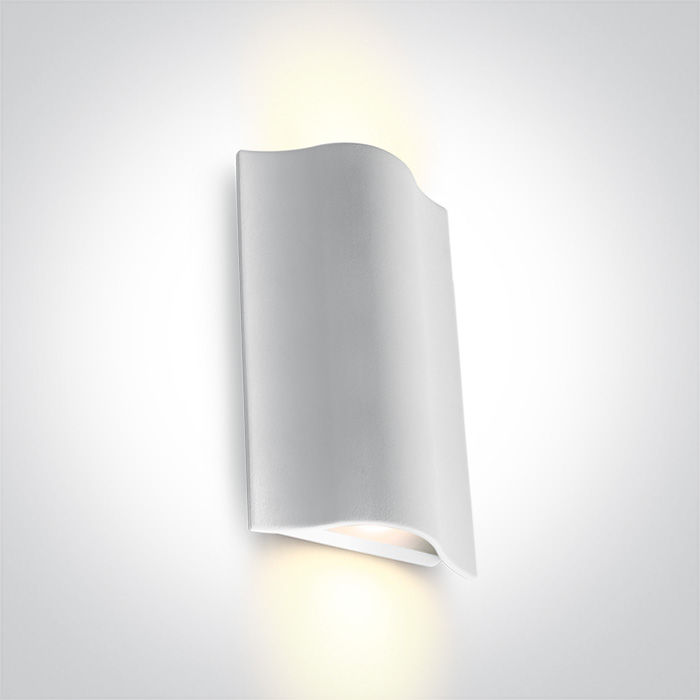

12 Wall & Ceiling LED > The Roof tile Range
67422A/W/W
2x6W COB LED Outdoor Slim Range Up & down beam.
Complete with driver
Complies with standard EN60598-1 and any other specific standards.
Complete with driver
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
The Roof tile Range
Order Code
67422A/W/W
Colour
White
Material
Die Cast
Shape
Rectangular
Length
190mm
Width
120mm
Height
50mm
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
2x6W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
20V
Power (Watts)
10W
IP Rating
IP54
Light Source
LED built in
LED Type
COB
LED Brand
Edison
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
6-12W
Power Factor
0,5
Constant Current
Yes
500mA
12-24V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
50ºC
Operating Temp
75ºC
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
2x400lm
Light Efficiency
66,67lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
13cm
Box Width
5,5cm
Box Height
21cm
Box Weight
0.750kg
Pcs/Carton
12
Barcode
5291889053033
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
