13 Wall & Ceiling LED > The Roof tile Range
67422/AN/W

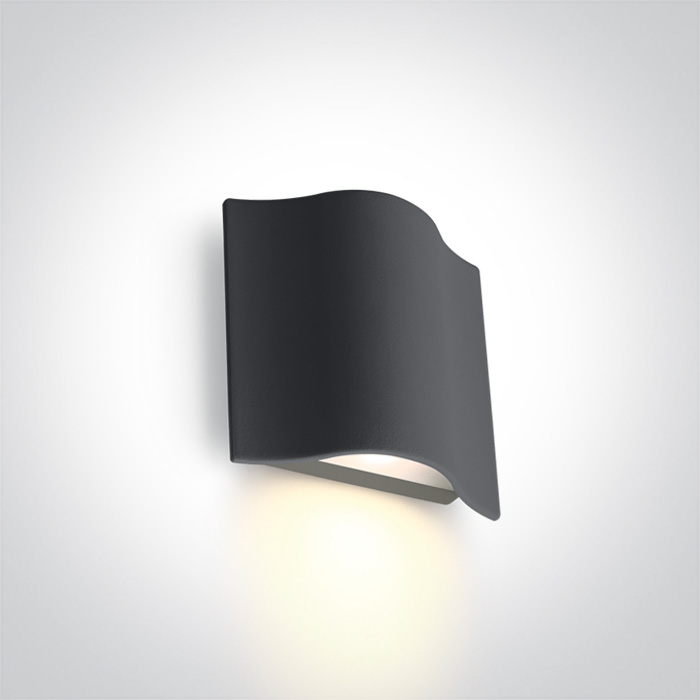

6W COB LED Outdoor Slim.
Complete with driver
Complies with standard EN60598-1 and any other specific standards.
Complete with driver
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
The Roof tile Range
Order Code
67422/AN/W
Colour
Anthracite
Material
Die Cast
Shape
Rectangular
Length
120mm
Width
120mm
Height
50mm
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
6W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
10V
Power (Watts)
5W
IP Rating
IP54
Light Source
LED built in
LED Type
COB
LED Brand
Cree
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
4,2-9W
Power Factor
0,5
Constant Current
Yes
500mA
8,5-17,5V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
50ºC
Operating Temp
75ºC
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
400lm
Light Efficiency
66,67lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
13cm
Box Width
7,5cm
Box Height
13cm
Box Weight
0.491kg
Pcs/Carton
24
Barcode
5291889053019
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
