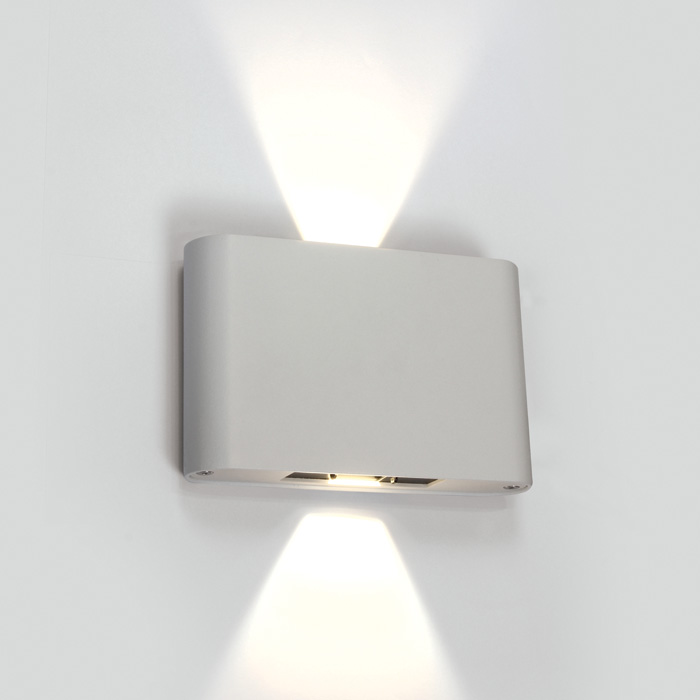

12 Wall & Ceiling LED > Outdoor Slim Range Up & down beam
67412/W/W
2x6W LED wall light with adjustable beam, ideal for both indoor
and outdoor installation.
Complete with 500mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 500mA driver.
Complies with standard EN60598-1 and any other specific standards.

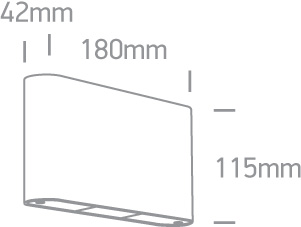

Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
Outdoor Slim Range Up & down beam
Order Code
67412/W/W
Colour
White
Material
Die Cast
Shape
Rectangular
Length
180mm
Width
42mm
Height
115mm
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
2x6W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
10V
Safety Class
Power (Watts)
5W
IP Rating
IP54
Light Source
LED built in
LED Type
COB
LED Brand
Cree
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
6-12W
Power Factor
0,5
Constant Current
Yes
500mA
12-24V
IP Rating
IP20
Safety Class
Ambient Temp
0
Operating Temp
0
Illumination Data
Colour Temperature
3000K
Lumen Output
2x400lm
Light Efficiency
66,67lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
0.933kg
Pcs/Carton
12
Barcode
5291889056355
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
