12 Wall & Ceiling LED > Outdoor Wall Dark Lights Die cast

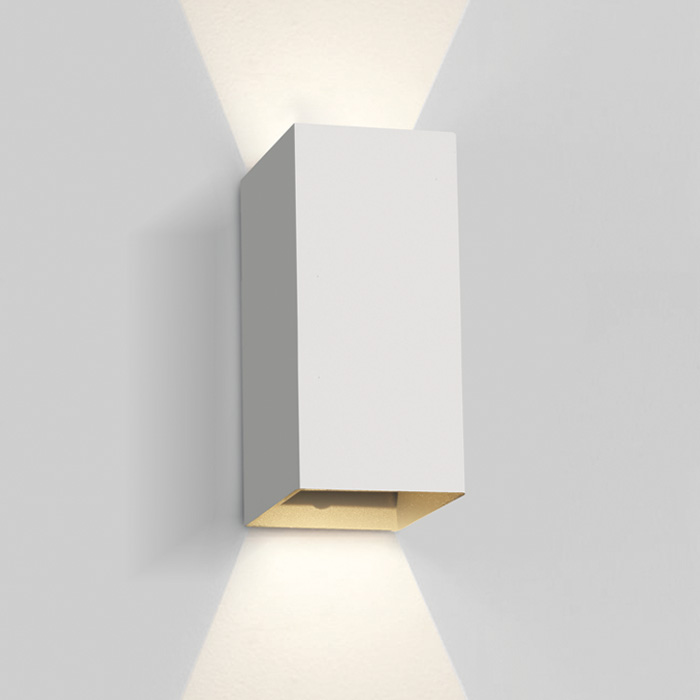

67398A/W/W
2x3W LED wall light, IP54, ideal for both indoor and outdoor
installation.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
Outdoor Wall Dark Lights Die cast
Order Code
67398A/W/W
Colour
White
Material
Die Cast
Shape
Rectangular
Length
90mm
Width
68mm
Height
166mm
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
2x3W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
17V
Power (Watts)
5,95W
IP Rating
IP54
Light Source
LED built in
LED Type
COB
LED Brand
Cree
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
3-6,1W
Power Factor
0,5
Constant Current
Yes
350mA
8,5-17,5V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
-20ºC~50ºC
Operating Temp
75ºC
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
2x200lm
Light Efficiency
66,67lm/W
CRI
80
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
11,5cm
Box Width
8,5cm
Box Height
17,5cm
Box Weight
0.658kg
Pcs/Carton
12
Barcode
5291889049623
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
