13 Plafo > The IP65 Plafo Range

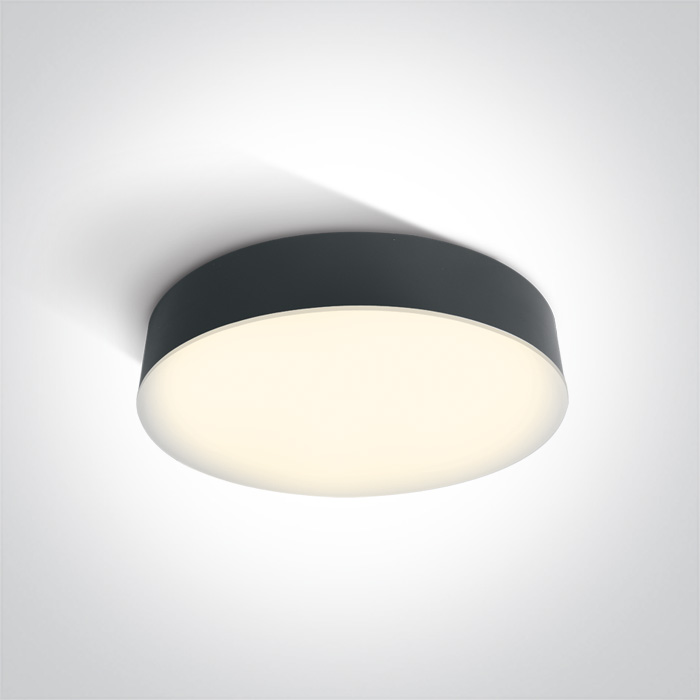

67390/AN/W
21W LED slim plafo, IP65, ideal for both indoor and outdoor
installation.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

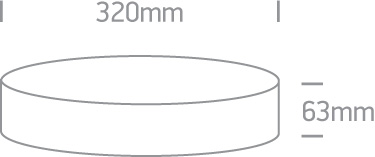

Dimensions
Downloads
Physical Specification
Item Group
13 Plafo
Family
The IP65 Plafo Range
Order Code
67390/AN/W
Colour
Anthracite
Material
ABS
Diffuser Material
PC
Shape
Circular
Height
63mm
Diameter
320mm
Surface Ceiling
Yes
Indoor
Yes
Outdoor
Yes
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
21W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
40V
Power (Watts)
20W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
LED Number
120
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
13,5-21W
Power Factor
0,9
Constant Current
Yes
500mA
27-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
1300lm
Light Efficiency
61,9lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
33cm
Box Width
33cm
Box Height
7,5cm
Box Weight
1.500kg
Pcs/Carton
10
Barcode
5291889049005
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
