12 Wall & Ceiling LED > Outdoor Slim Range Up & down beam

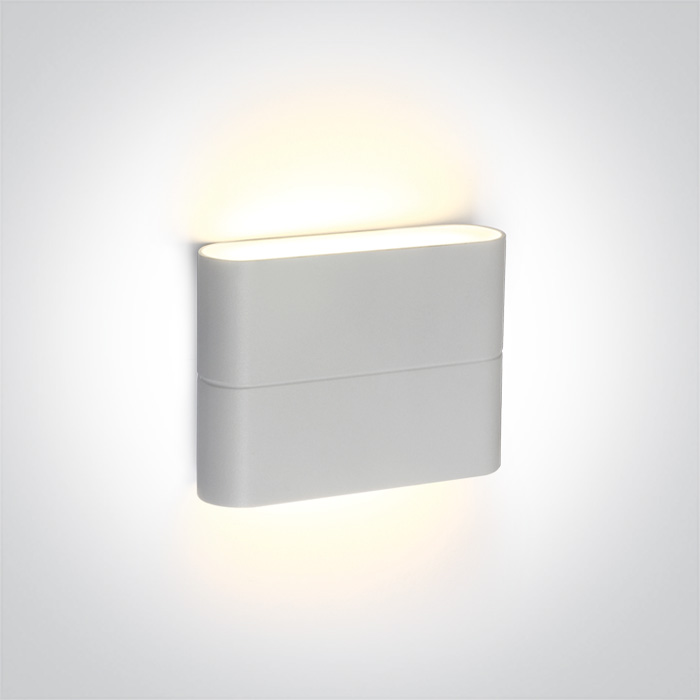

67376/W/W
2x3W, IP54,SMD 2835, Outdoor Slim Range Up & down beam.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.

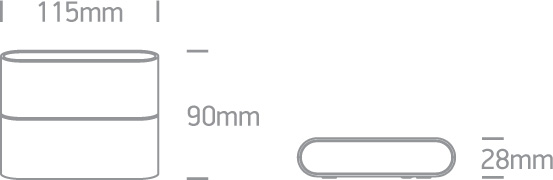

Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
Outdoor Slim Range Up & down beam
Order Code
67376/W/W
Colour
White
Material
Die Cast
Shape
Rectangular
Length
115mm
Width
90mm
Height
28mm
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
2x3W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
16V
Power (Watts)
5,6W
IP Rating
IP54
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Edison
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
2,9-6,1W
Power Factor
0,5
Constant Current
Yes
350mA
8,5-17,5V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
50ºC
Operating Temp
75ºC
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
2x210lm
Light Efficiency
70lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
9,5cm
Box Width
5,2cm
Box Height
15cm
Box Weight
0.425kg
Pcs/Carton
24
Barcode
5291889043621
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
