12 Wall & Ceiling LED > Outdoor Wall Up & Down Lights Die cast
67374/W/W

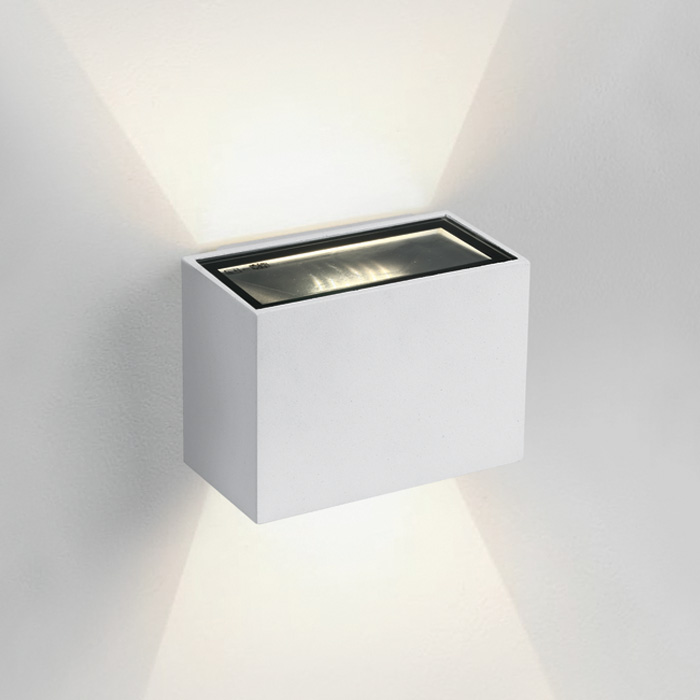

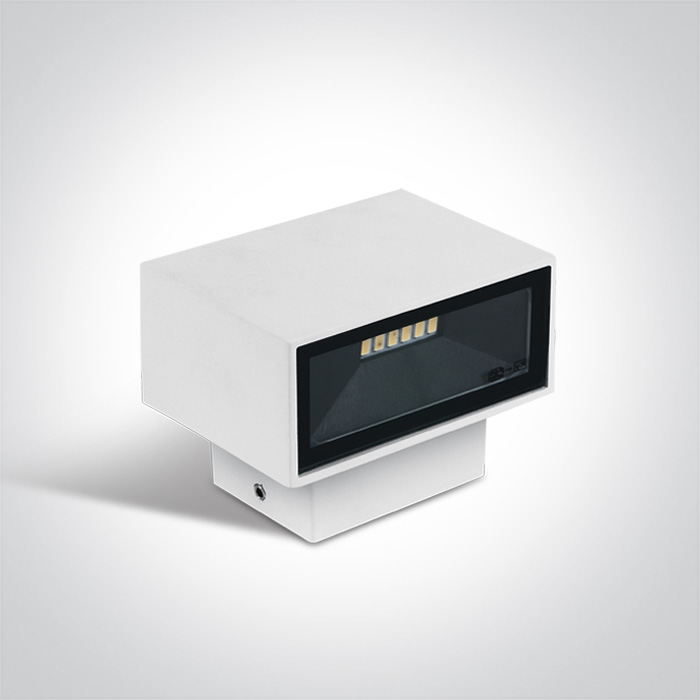

2x3W LED wall light, IP54, ideal for both indoor and outdoor
installation.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
Outdoor Wall Up & Down Lights Die cast
Order Code
67374/W/W
Colour
White
Material
Die Cast
Shape
Rectangular
Length
90mm
Width
65mm
Height
65mm
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
2x3W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
16V
Power (Watts)
5,6W
IP Rating
IP54
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Edison
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
3-6W
Power Factor
0,5
Constant Current
Yes
350mA
8,5-17,5V
IP Rating
IP20
Illumination Data
Colour Temperature
3000K
Lumen Output
2x210lm
Light Efficiency
70lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
7,5cm
Box Width
7,5cm
Box Height
11cm
Box Weight
0.429kg
Pcs/Carton
24
Barcode
5291889043584
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
