12 Wall & Ceiling LED > Outdoor Wall Up & Down Lights Die cast

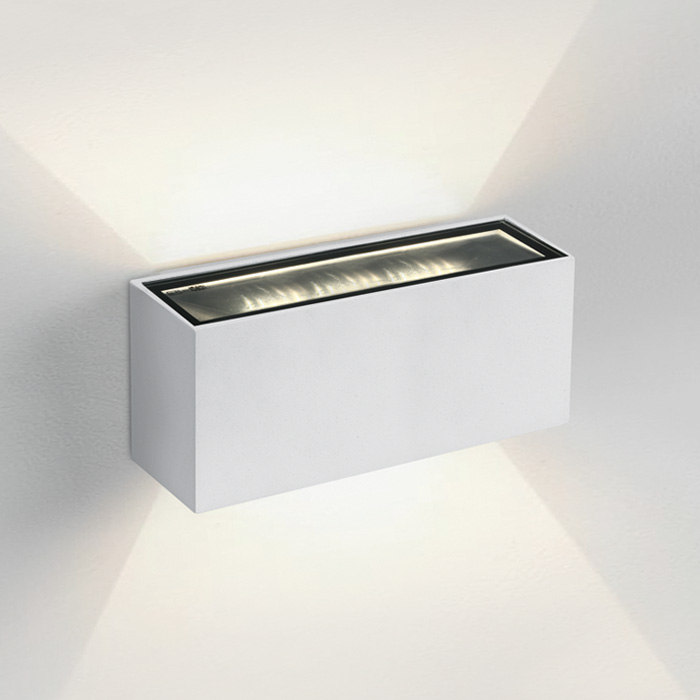

67374A/W/W
2x6W LED wall light, IP54, ideal for both indoor and outdoor
installation.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
Outdoor Wall Up & Down Lights Die cast
Order Code
67374A/W/W
Colour
White
Material
Die Cast
Shape
Rectangular
Length
180mm
Width
70mm
Height
65mm
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
2x6W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
38V
Power (Watts)
11,4W
IP Rating
IP54
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Edison
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
7,2-12W
Power Factor
0,9
Constant Current
Yes
300mA
26-40V
IP Rating
IP20
Illumination Data
Colour Temperature
3000K
Lumen Output
2x420lm
Light Efficiency
70lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
8cm
Box Width
7,5cm
Box Height
18,5cm
Box Weight
0.800kg
Pcs/Carton
12
Barcode
5291889043607
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
