13 Plafo > The LED Slim Plafo Range PC
67370/W/C
25W LED slim plafo, IP54, ideal for both indoor and outdoor
installation.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

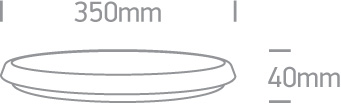

Dimensions
Downloads
Physical Specification
Item Group
13 Plafo
Family
The LED Slim Plafo Range PC
Order Code
67370/W/C
Colour
White
Material
PC
Shape
Circular
Height
40mm
Diameter
350mm
Surface Ceiling
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
25W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
80V
Power (Watts)
24W
IP Rating
IP54
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
LED Number
335
F Mark
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
18,6-24,8W
Power Factor
0,9
Constant Current
Yes
Voltage Range
60-80V
Output
310mA
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
4000K
Lumen Output
2000lm
Light Efficiency
80lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
36cm
Box Width
36cm
Box Height
5cm
Box Weight
1.340kg
Pcs/Carton
10
Barcode
5291889043102
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
