New 2025 Edition 2 > Plafo

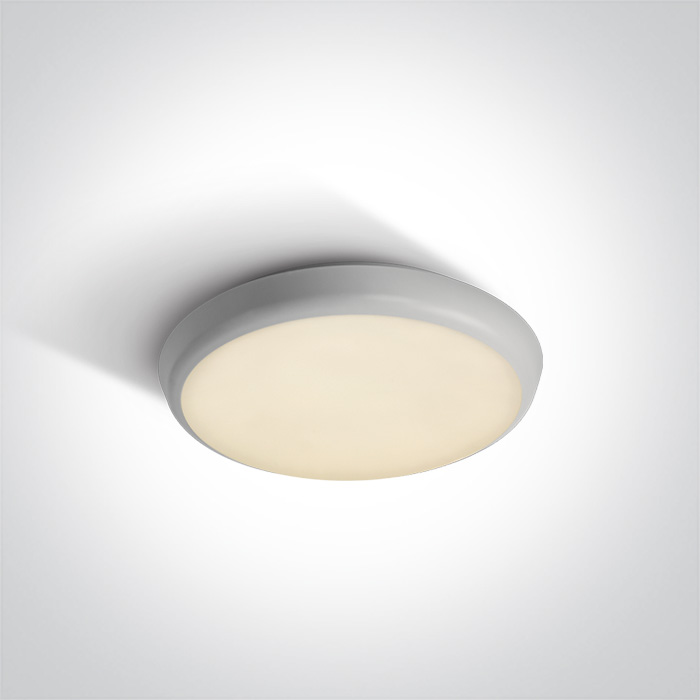

67366/W/V
CCT Variable 12W LED slim plafo, IP54, ideal for both indoor and outdoor
installation.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

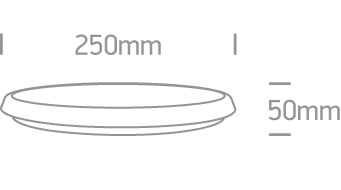

Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Plafo
Order Code
67366/W/V
Colour
White
Material
PC
Shape
Circular
Height
50mm
Diameter
250mm
Surface Ceiling
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
12W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
160mA
IP Rating
IP54
Light Source
LED built in
LED Type
SMD
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
160mA
IP Rating
IP20
Dimmable
No
Illumination Data
Colour Temperature
3000K-4000K-5000K
Lumen Output
1000lm
Light Efficiency
83lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
0.795kg
Pcs/Carton
20
Barcode
5291889082422
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
