New 2025 Edition 3 > Emergency Lights

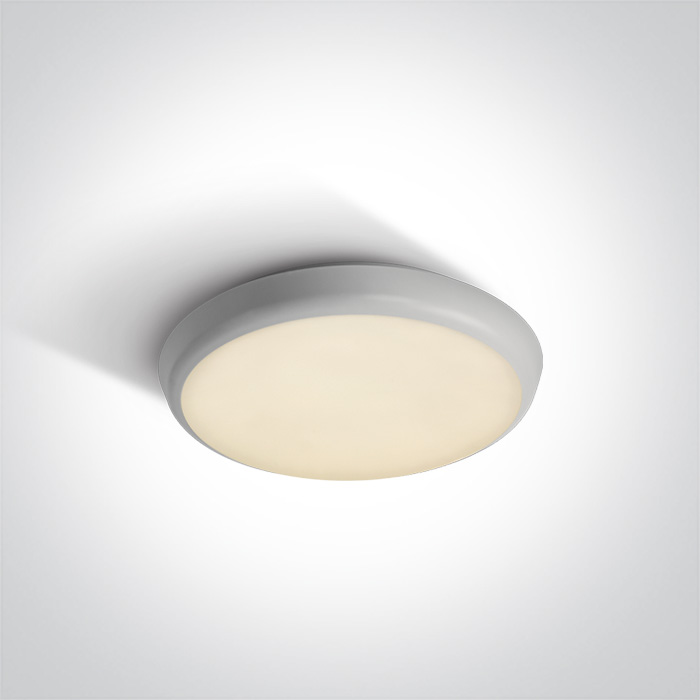

67366E/W/V
12W CCT Variable 3-Hour Emergency LED plafo light, IP54.
Supplied with non-dimmable LED driver and lithium battery.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver and lithium battery.
Complies with standard EN60598-1 and any other specific standards.

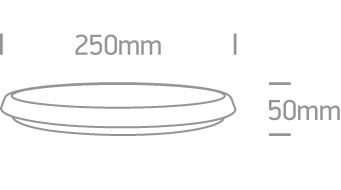

Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 3
Family
Emergency Lights
Order Code
67366E/W/V
Colour
White
Material
PC
Shape
Circular
Height
50mm
Diameter
250mm
Surface Ceiling
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
12W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Light Source
LED built in
LED Type
SMD
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Illumination Data
Colour Temperature
3000K-4000K-5000K
Lumen Output
1000lm
Light Efficiency
83,33lm/W
CRI
80
Illumination Diagram
Packing Info
Pcs/Carton
20
Barcode
5291889082453
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
