14 Plafo > Outdoor Slim LED Plafo Die cast
67363/AN/W

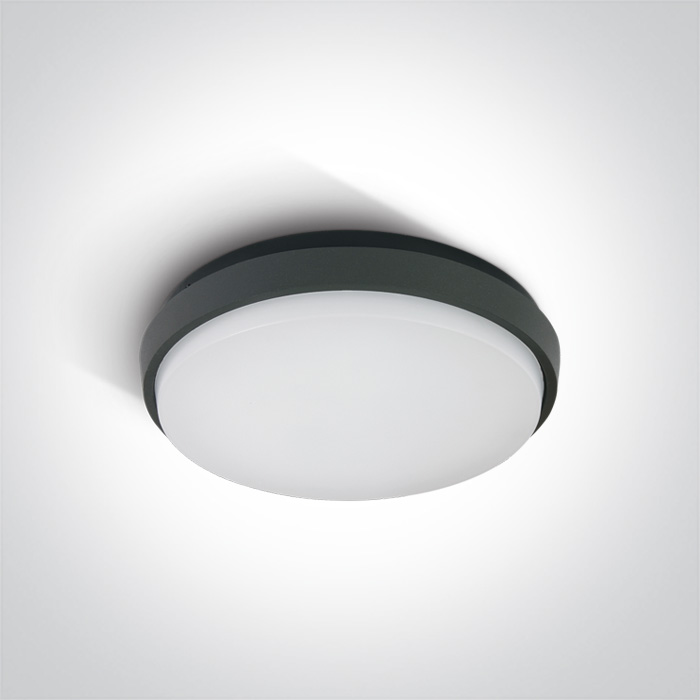

30W LED slim plafo, IP54, ideal for both indoor and outdoor
installation.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
14 Plafo
Family
Outdoor Slim LED Plafo Die cast
Order Code
67363/AN/W
Colour
Anthracite
Material
Die Cast
Shape
Circular
Height
49mm
Diameter
300mm
Surface Ceiling
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
30W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
40V
Power (Watts)
28W
IP Rating
IP54
Light Source
LED built in
LED Type
SMD 3014
LED Brand
Edison
LED Number
299
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
20-30W
Power Factor
0,9
Constant Current
Yes
700mA
28-43V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
2500lm
Light Efficiency
83,33lm/W
CRI
80
Beam Angle
120°
Illumination Diagram
Packing Info
Box Length
25,5cm
Box Width
25,5cm
Box Height
6,5cm
Box Weight
1.516kg
Pcs/Carton
6
Barcode
5291889040378
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
