12 Wall & Ceiling LED > Outdoor Wall Up & Down Lights

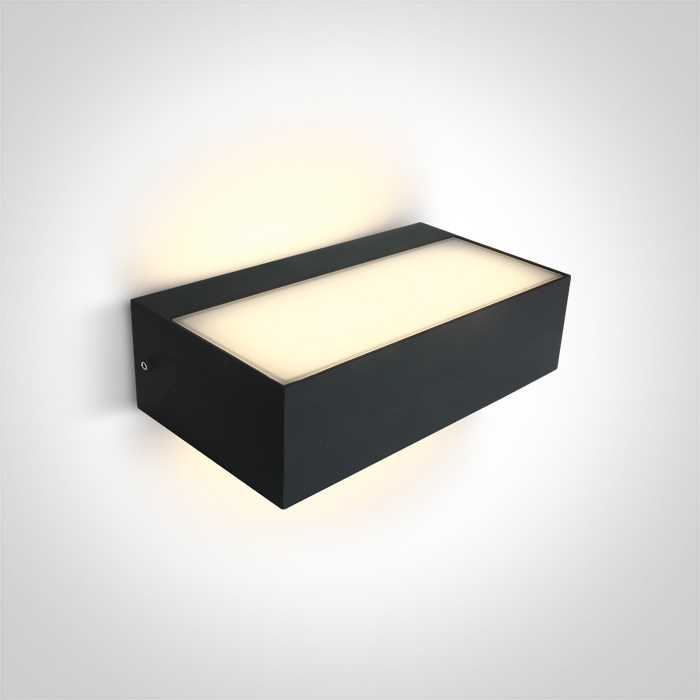

67362C/AN/W
9W LED wall light, IP54, ideal for both indoor and outdoor
installation.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

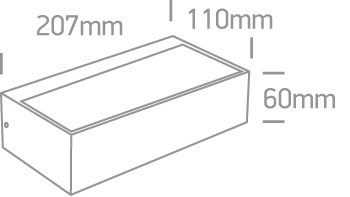

Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
Outdoor Wall Up & Down Lights
Order Code
67362C/AN/W
Colour
Anthracite
Material
Die Cast
Shape
Rectangular
Length
207mm
Width
110mm
Height
60mm
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
2x4,5W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
25V
Power (Watts)
8,5W
IP Rating
IP54
Light Source
LED built in
LED Type
SMD 3014
LED Brand
Edison
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
5,95-10,15W
Power Factor
0,9
Constant Current
Yes
350mA
17-29V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
2x315lm
Light Efficiency
70lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
14cm
Box Width
7cm
Box Height
22,5cm
Box Weight
1.000kg
Pcs/Carton
12
Barcode
5291889043782
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
