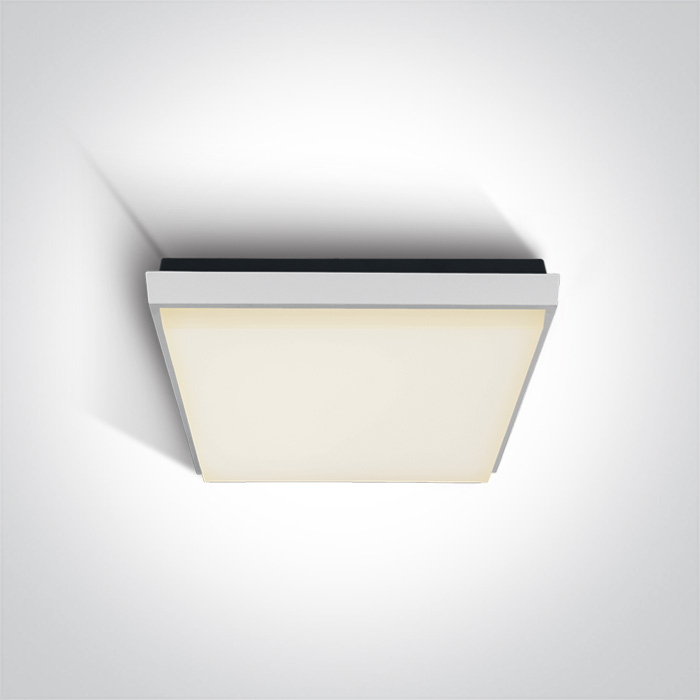

13 Plafo > Outdoor Slim LED Plafo Die cast
67362A/W/W
25W LED slim plafo, IP54, ideal for both indoor and outdoor
installation.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Plafo
Family
Outdoor Slim LED Plafo Die cast
Order Code
67362A/W/W
Colour
White
Material
Die Cast
Shape
Rectangular
Length
238mm
Width
238mm
Height
46mm
Surface Ceiling
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
25W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
IP Rating
IP54
Light Source
LED built in
LED Type
SMD 3014
LED Brand
Edison
LED Number
264
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power Factor
0,9
Constant Current
Yes
500mA
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
1600lm
Light Efficiency
75lm/W
CRI
80
Beam Angle
120°
Illumination Diagram
Packing Info
Box Length
25,5cm
Box Width
25,5cm
Box Height
6,5cm
Box Weight
1.225kg
Pcs/Carton
8
Barcode
5291889039426
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
