13 Plafo > Outdoor Slim LED Plafo Die cast

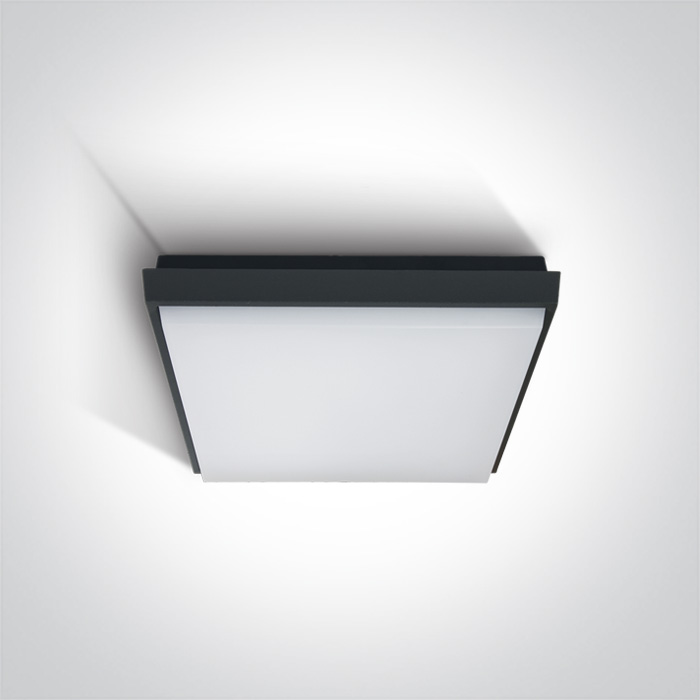

67362A/AN/W
25W LED slim plafo, IP54, ideal for both indoor and outdoor
installation.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Plafo
Family
Outdoor Slim LED Plafo Die cast
Order Code
67362A/AN/W
Colour
Anthracite
Material
Die Cast
Shape
Rectangular
Length
238mm
Width
238mm
Height
46mm
Surface Ceiling
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
25W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
IP Rating
IP54
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Osram
LED Number
264
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power Factor
0,9
Constant Current
Yes
500mA
0
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
1600lm
Light Efficiency
75lm/W
CRI
80
Beam Angle
120°
Illumination Diagram
Packing Info
Box Length
25,5cm
Box Width
25,5cm
Box Height
6,5cm
Box Weight
1.225kg
Pcs/Carton
8
Barcode
5291889039419
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
