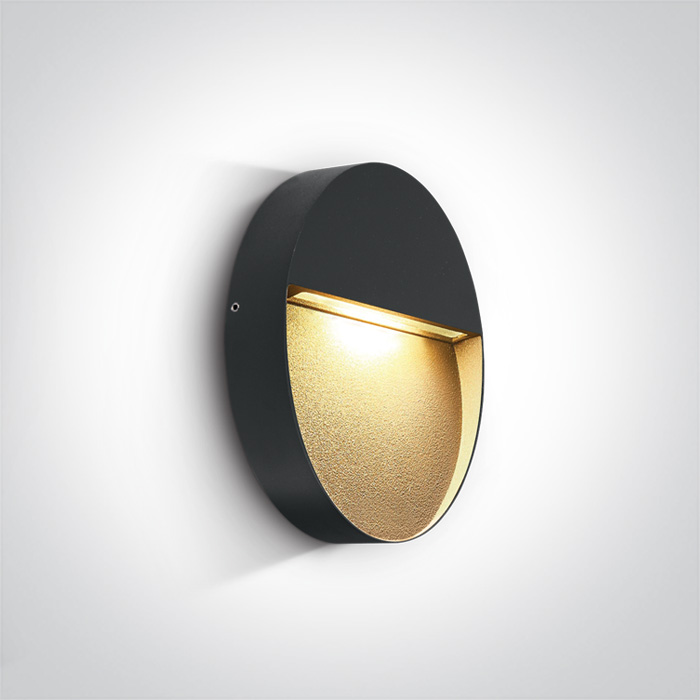

13 Wall & Ceiling LED > Round Indoor/Outdoor Wall Dark Lights Die cast
67360/AN/W
9W LED wall light, IP54, ideal for both indoor and outdoor
installation.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
Round Indoor/Outdoor Wall Dark Lights Die cast
Order Code
67360/AN/W
Colour
Anthracite
Material
Die Cast
Shape
Circular
Height
36mm
Diameter
212mm
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
9W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
13V
Power (Watts)
8,4W
IP Rating
IP54
Light Source
LED built in
LED Type
SMD
LED Brand
Edison
LED Number
15
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
5,6-9W
Power Factor
0,7
Constant Current
Yes
700mA
8-13V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
350lm
Light Efficiency
38,88lm/W
CRI
80
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
23cm
Box Width
5cm
Box Height
23cm
Box Weight
0.791kg
Pcs/Carton
12
Barcode
5291889040545
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
