13 Wall & Ceiling LED > Round Indoor/Outdoor Wall Dark Lights Die cast
67359/AN/W

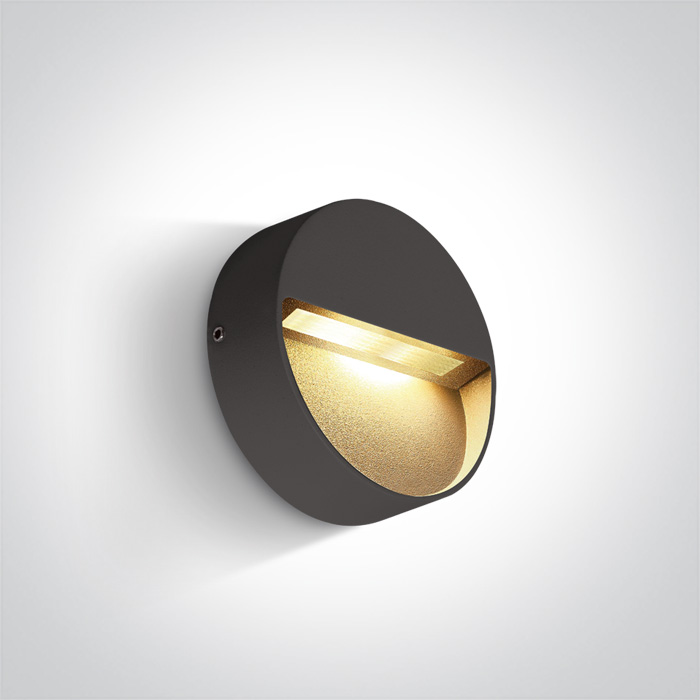

3W LED wall light, IP54, ideal for both indoor and outdoor
installation.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
Round Indoor/Outdoor Wall Dark Lights Die cast
Order Code
67359/AN/W
Colour
Anthracite
Material
Die Cast
Shape
Circular
Height
30mm
Diameter
100mm
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
3W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
8V
Power (Watts)
2,8W
IP Rating
IP54
Light Source
LED built in
LED Type
SMD
LED Brand
Osram
LED Number
6
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
1-3,5W
Power Factor
0,5
Constant Current
Yes
350mA
3-10V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
-20ºC~50ºC
Operating Temp
80ºC
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
200lm
Light Efficiency
66,67lm/W
CRI
80
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
11cm
Box Width
4cm
Box Height
11cm
Box Weight
0.256kg
Pcs/Carton
30
Barcode
5291889043539
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
