20 Garden & Underwater > LED Bollards Die cast

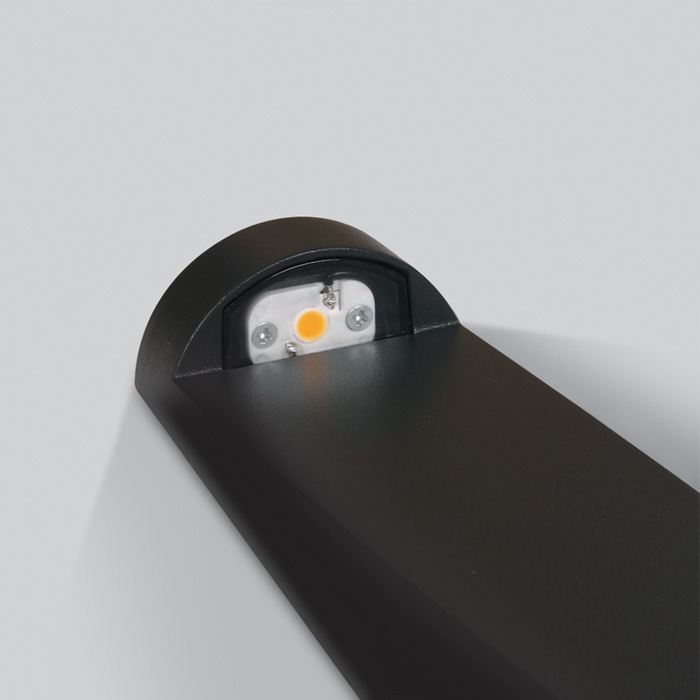

67358/AN/W
7W LED Bollard, IP65 for Garden illumination.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
20 Garden & Underwater
Family
LED Bollards Die cast
Order Code
67358/AN/W
Colour
Anthracite
Material
Die Cast
Shape
Rectangular
Length
100mm
Width
50mm
Height
400mm
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
No
IK Rating
5
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
7W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
9V
Power (Watts)
6,3W
IP Rating
IP65
Light Source
LED built in
LED Brand
Cree
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
4,8-9,6W
Power Factor
0,9
Constant Current
Yes
700mA
6-12V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
262lm
Light Efficiency
37,42lm/W
CRI
80
Beam Angle
49°
Illumination Diagram
Packing Info
Box Length
43,5cm
Box Width
8cm
Box Height
13cm
Box Weight
1.037kg
Pcs/Carton
8
Barcode
5291889034995
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
