21 Emergency Lights > Emergency LED Plafo

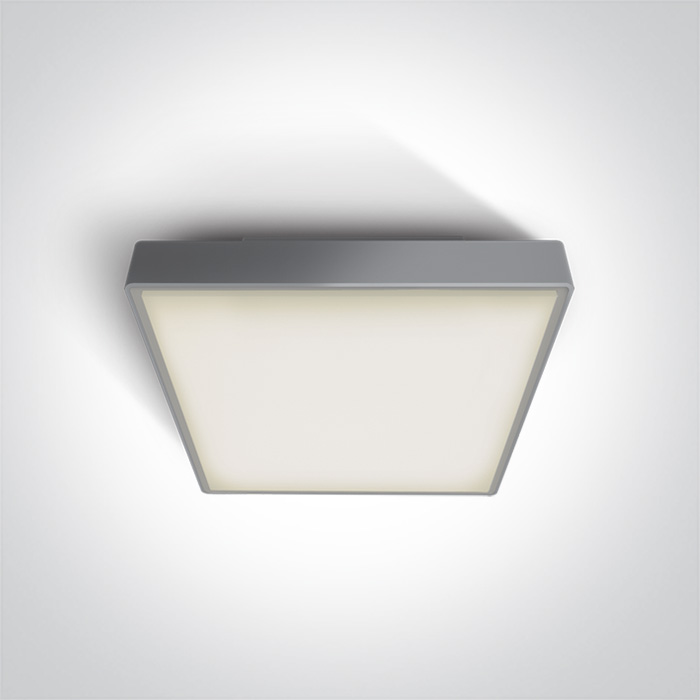

67282ANE/G/W
16W Emergency LED plafo light, IP65, ideal for both indoor and outdoor
installation.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

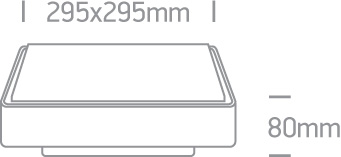

Dimensions
Downloads
Physical Specification
Item Group
21 Emergency Lights
Family
Emergency LED Plafo
Order Code
67282ANE/G/W
Colour
Grey
Material
Plastic
Diffuser Material
PC
Shape
Rectangular
Length
295mm
Width
295mm
Height
80mm
Surface Ceiling
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
15W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Power (Watts)
15W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
8,5-16W
Power Factor
0,9
Constant Current
Yes
500mA
19-32V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
1280lm
Light Efficiency
80lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
31cm
Box Width
31cm
Box Height
8,5cm
Box Weight
1.620kg
Pcs/Carton
10
Barcode
5291889051732
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
