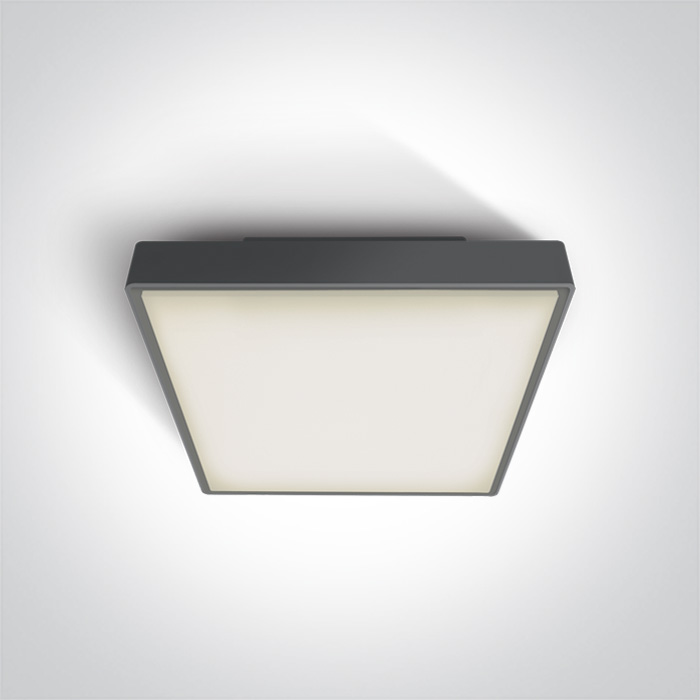

13 Plafo > The LED Plafo Outdoor Square Plastic
67282AN/AN/W
24W LED plafo light, IP65, ideal for both indoor and outdoor
installation.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

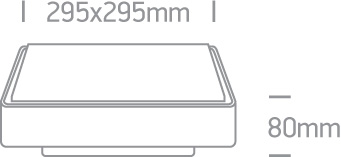

Dimensions
Downloads
Physical Specification
Item Group
13 Plafo
Family
The LED Plafo Outdoor Square Plastic
Order Code
67282AN/AN/W
Colour
Anthracite
Material
Plastic
Diffuser Material
PC
Shape
Rectangular
Length
295mm
Width
295mm
Height
80mm
Surface Ceiling
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
24W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
600mA
Voltage
38V
Power (Watts)
22,8W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
LED Number
121
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
15,6-26W
Power Factor
0,9
Constant Current
Yes
600mA
26-43,5V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
1440lm
Light Efficiency
60lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
30,5cm
Box Width
30,5cm
Box Height
8,5cm
Box Weight
1.480kg
Pcs/Carton
10
Barcode
5291889043430
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
