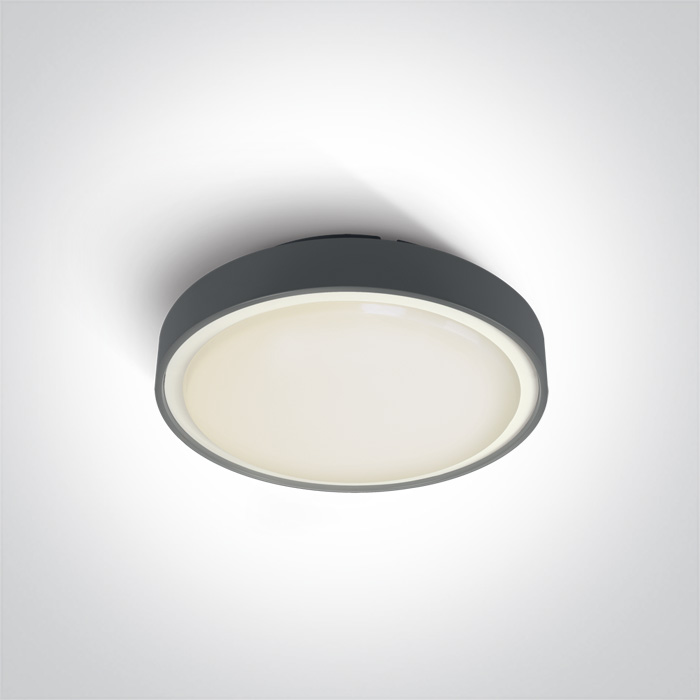

13 Plafo > The LED Plafo Outdoor Round
67280N/AN/W
16W LED plafo light, IP65, ideal for both indoor and outdoor
installation.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Plafo
Family
The LED Plafo Outdoor Round
Order Code
67280N/AN/W
Colour
Anthracite
Material
Plastic
Diffuser Material
PC
Shape
Circular
Height
75mm
Diameter
260mm
Surface Ceiling
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
16W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
30V
Power (Watts)
15W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
LED Number
81
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
8,5-16W
Power Factor
0,9
Constant Current
Yes
500mA
19-32V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
960lm
Light Efficiency
60lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
27cm
Box Width
27cm
Box Height
8cm
Box Weight
0.980kg
Pcs/Carton
10
Barcode
5291889043287
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
