21 Emergency Lights > Emergency CCT V LED Plafo
67218E/W/V
15W Emergency LED plafo light, IP65, ideal for both indoor and outdoor
installation.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

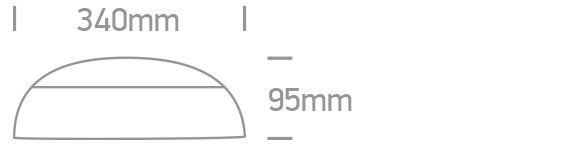

Dimensions
Downloads
Physical Specification
Item Group
21 Emergency Lights
Family
Emergency CCT V LED Plafo
Order Code
67218E/W/V
Colour
White
Material
Plastic
Diffuser Material
Plastic
Shape
Circular
Height
95mm
Diameter
340mm
Surface Ceiling
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
10
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
15W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
180mA
Voltage
78V
Power (Watts)
14,04W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
11,16-16.02W
Power Factor
0,9
Constant Current
Yes
Voltage Range
62-89V
Output
180mA
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Battery Capacity
1500mAh
Battery Voltage
3.2V
Operation Time
3hrs
Illumination Data
Colour Temperature
3000K-4000K-6500K
Lumen Output
1600lm
Light Efficiency
106,67lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
1.450kg
Pcs/Carton
6
Barcode
5291889074212
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
