19 Garden & Underwater > The COB Garden Round Spots Die cast
67196C/AN/W

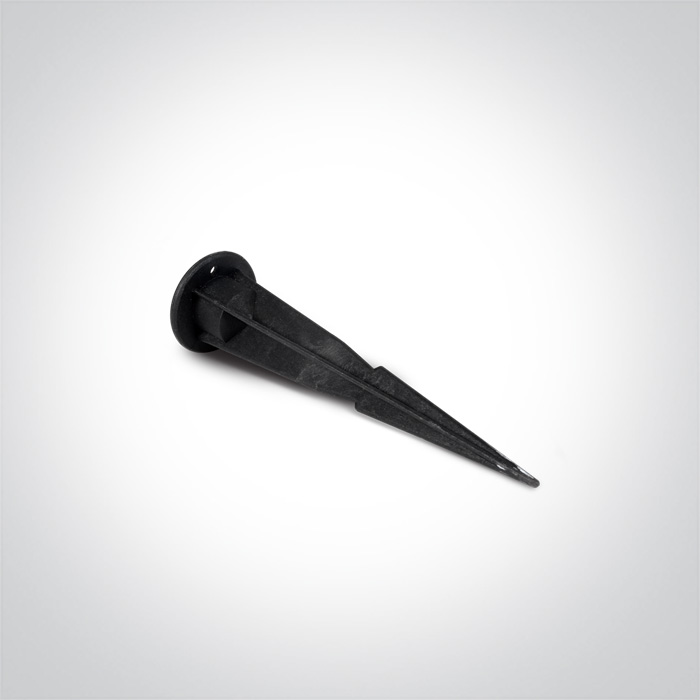

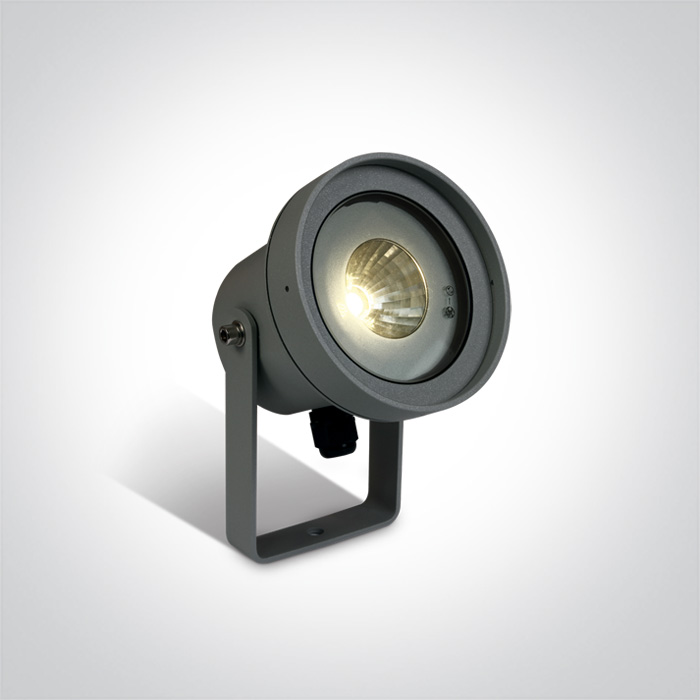

9W LED spot, IP65, supplied with spike, for garden illumination.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

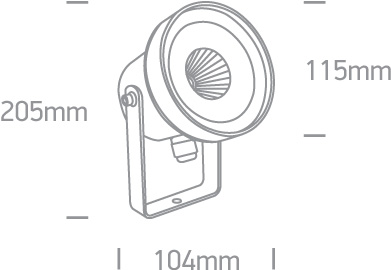

Dimensions
Downloads
Physical Specification
Item Group
19 Garden & Underwater
Family
The COB Garden Round Spots Die cast
Order Code
67196C/AN/W
Colour
Anthracite
Material
Die Cast
Diffuser Material
Glass
Shape
Circular
Height
205mm
Diameter
115mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
1 Direction
IK Rating
6
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
9W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
Cable Length
150cm
F Mark
Fitting
Input Type
Constant Current
IP Rating
IP65
Light Source
LED built in
LED Type
COB
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
500mA
IP Rating
IP20
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
700lm
Light Efficiency
77,78lm/W
CRI
85
Beam Angle
35°
Illumination Diagram
Packing Info
Box Length
25cm
Box Width
12,5cm
Box Height
15cm
Box Weight
1.250kg
Pcs/Carton
6
Barcode
5291889040606
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
15
