20 Garden & Underwater > The COB Garden Round Spots Die cast

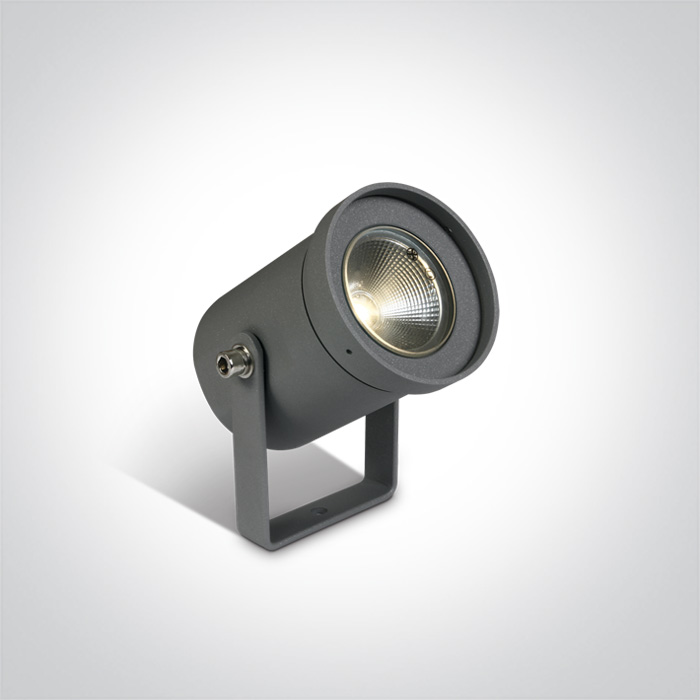

67196A/AN/W
3W LED spot, IP65, supplied with spike, for garden illumination.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

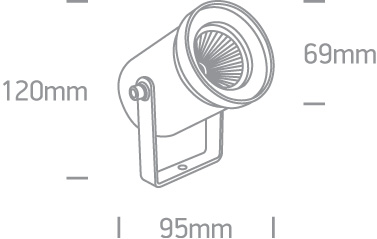

Dimensions
Downloads
Physical Specification
Item Group
20 Garden & Underwater
Family
The COB Garden Round Spots Die cast
Order Code
67196A/AN/W
Colour
Anthracite
Material
Die Cast
Diffuser Material
Glass
Shape
Circular
Height
120mm
Diameter
69mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
1 Direction
IK Rating
6
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
3W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
Cable Length
150cm
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
9V
Power (Watts)
2,8W
IP Rating
IP65
Light Source
LED built in
LED Type
COB
LED Brand
Edison
LED Number
1
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
0,9-3,5W
Power Factor
0,4
Constant Current
Yes
350mA
2,5-10V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
240lm
Light Efficiency
80lm/W
CRI
85
Beam Angle
35°
Illumination Diagram
Packing Info
Box Length
22cm
Box Width
9cm
Box Height
11,5cm
Box Weight
0.766kg
Pcs/Carton
12
Barcode
5291889040583
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
15
