ONE Light

    • 12 Wall & Ceiling LED > Outdoor Wall Cylinders High Power

    67138EL/AN/C
    67138EL/AN/C

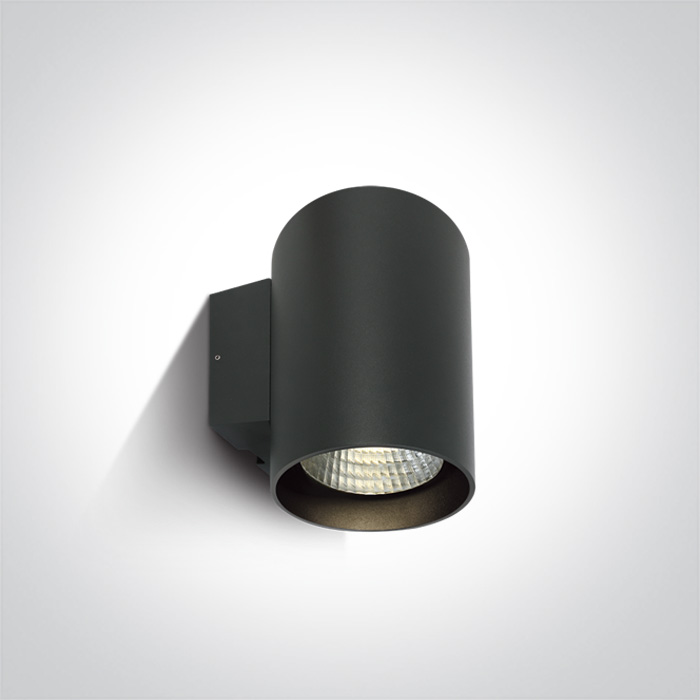

    20W Outdoor Wall Cylinder, IP65.

    AC LED.

    Complies with standard EN60598-1 and any other specific standards.
    Indoor-Outdoor
    Wall
    IP
    CRI
    Dimmable
    Beam Angle
    CE
    Dimensions
    Downloads
    Product PDF Installation Manual IES Photo Download

    Physical Specification

    +
    Item Group
    12 Wall & Ceiling LED
    Family
    Outdoor Wall Cylinders High Power
    Order Code
    67138EL/AN/C
    Colour
    Anthracite
    Material
    Die Cast
    Shape
    Circular
    Height
    185mm
    Diameter
    140mm
    Surface Wall
    Yes
    Indoor
    Yes
    Outdoor
    Yes
    Adjustable
    No

    Electrical Characteristics

    +
    Gear
    No
    Fitting + Driver
    Input Voltage
    220-240V
    50 Hz
    Yes
    60 Hz
    Yes
    Safety Class
    Power (Watts)
    20W
    IP Rating
    IP65
    Light Source
    LED built in
    Dimmable
    Yes
    Dimmer type
    Triac
    F Mark

    Illumination Data

    +
    Colour Temperature
    4000K
    Lumen Output
    1400lm
    Light Efficiency
    70lm/W
    CRI
    80
    Beam Angle
    35°
    Illumination Diagram

    Packing Info

    +
    Box Weight
    2.400kg
    Pcs/Carton
    4
    Barcode
    5291889062097
    HS Code
    9405413990

    Energy Label

    +

    Certification & Warranty

    +
    Warranty
    2 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    19
