12 Wall & Ceiling LED > Outdoor Wall Cylinders Down Beam
67138E/G/W

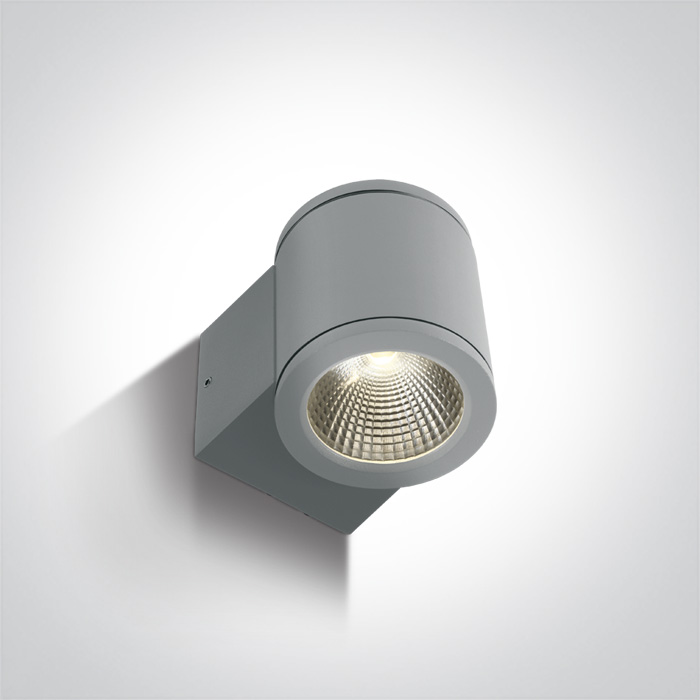

6W Outdoor Wall Cylinder, IP54.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
Outdoor Wall Cylinders Down Beam
Order Code
67138E/G/W
Colour
Grey
Material
Die Cast
Shape
Circular
Height
90mm
Diameter
80mm
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
6W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
10V
Safety Class
Power (Watts)
5W
IP Rating
IP54
Light Source
LED built in
LED Type
COB
LED Brand
Cree
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
3-6W
Power Factor
0,5
Constant Current
Yes
500mA
6-12V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
50°C
Operating Temp
70°C
Illumination Data
Colour Temperature
3000K
Lumen Output
440lm
Light Efficiency
73,33lm/W
CRI
80
Beam Angle
35°
Illumination Diagram
Packing Info
Box Length
12cm
Box Width
9cm
Box Height
10cm
Box Weight
0.583kg
Pcs/Carton
12
Barcode
5291889024255
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
