20 Garden & Underwater > LED Bollards Die cast

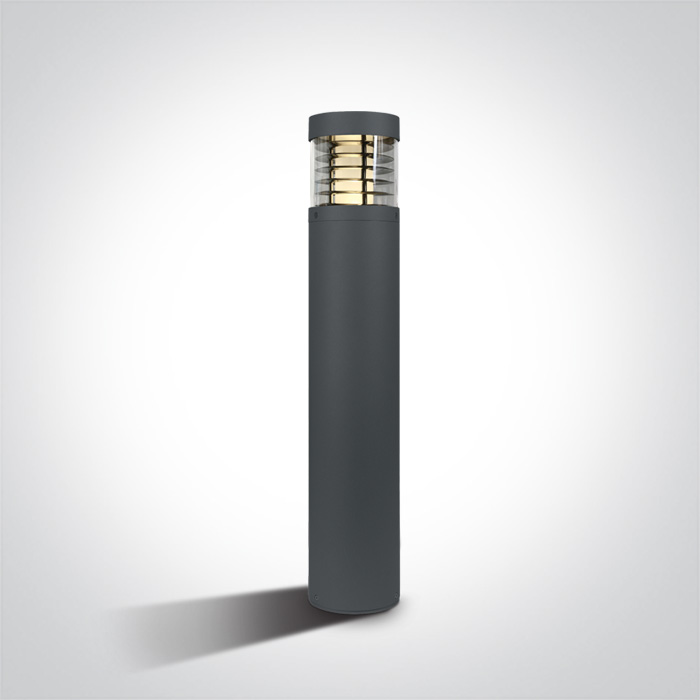

67034/AN/W
15W LED Bollard, IP54 for Garden illumination.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

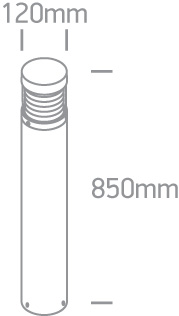

Dimensions
Downloads
Physical Specification
Item Group
20 Garden & Underwater
Family
LED Bollards Die cast
Order Code
67034/AN/W
Colour
Anthracite
Material
Die Cast
Diffuser Material
PC
Shape
Circular
Height
850mm
Diameter
120mm
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
No
IK Rating
5
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
15W
IP Rating
IP54
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
40V
Power (Watts)
14W
IP Rating
IP54
Light Source
LED built in
LED Brand
Cree
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
13-15W
Power Factor
0,9
Constant Current
Yes
350mA
37-43V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
-20~55°C
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
450lm
Light Efficiency
30lm/W
CRI
80
Beam Angle
50°
Illumination Diagram
Packing Info
Box Length
88,5cm
Box Width
14,5cm
Box Height
14,5cm
Box Weight
4.175kg
Pcs/Carton
4
Barcode
5291889051176
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Average Lifetime
30000hours
Wee Directive
Yes
Year in which the CE mark was affixed
17
