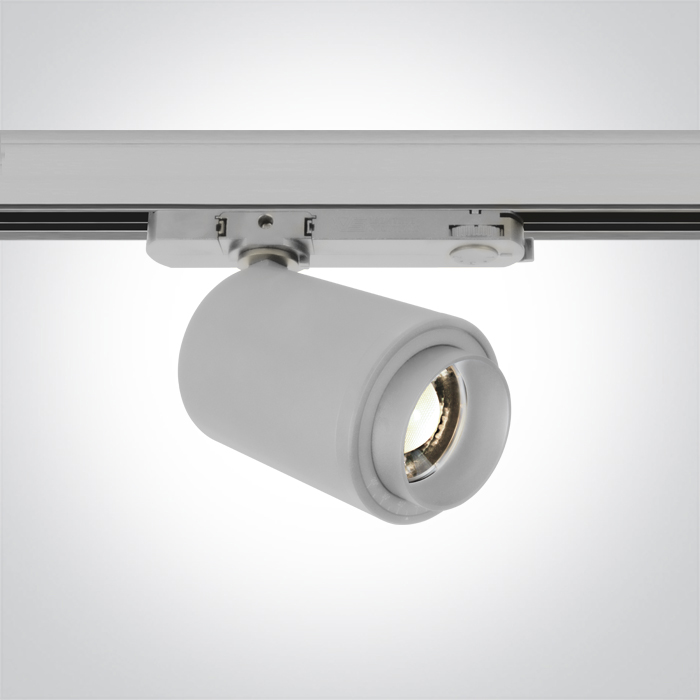

08 Track Lights > The COB Zoomable Cylinders
65650BT/W/W
20W adjustable beam 20°-60° track spot with COB LED, ideal for
shops and showrooms.
Supplied with electronic high frequency control driver as standard.
Complies with standard EN60598-1 and any other specific standards.
Supplied with electronic high frequency control driver as standard.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
08 Track Lights
Family
The COB Zoomable Cylinders
Order Code
65650BT/W/W
Colour
White
Material
Die Cast
Diffuser Material
Plastic
Shape
Circular
Height
120mm
Diameter
75mm
Track mounted
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
500mA
Safety Class
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Constant Current
Yes
500mA
36V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
50°C
Operating Temp
80°C
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
2000lm
Light Efficiency
100lm/W
CRI
90
Beam Angle
20°-60°
Illumination Diagram
Packing Info
Box Weight
0.726kg
Pcs/Carton
15
Barcode
5291889078302
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Average Lifetime
50000Hrs L90B50
Wee Directive
Yes
Year in which the CE mark was affixed
23
