08 Track Lights > The COB Zoomable Cylinders

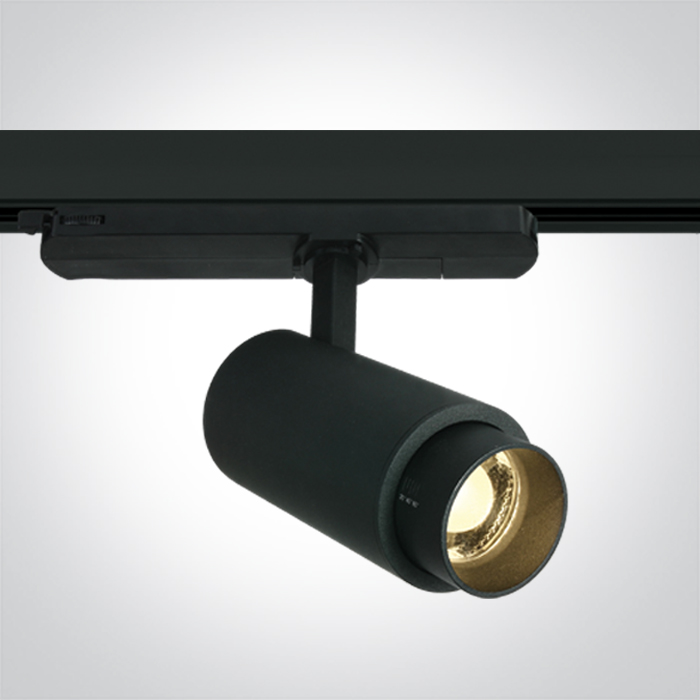

65650AT/B/W
15W adjustable beam angle COB LED track spot, ideal for
shops and showrooms.
Complete with 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 350mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
08 Track Lights
Family
The COB Zoomable Cylinders
Order Code
65650AT/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
148mm
Diameter
55mm
Track mounted
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
15W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
41V
Power (Watts)
14,4W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Citizen
LED Number
1
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
8,75-14,7W
Power Factor
0,9
Constant Current
Yes
350mA
25-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
1350lm
Light Efficiency
90lm/W
CRI
80
Beam Angle
20°-60°
Illumination Diagram
Packing Info
Box Weight
0.586kg
Pcs/Carton
15
Barcode
5291889066460
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
