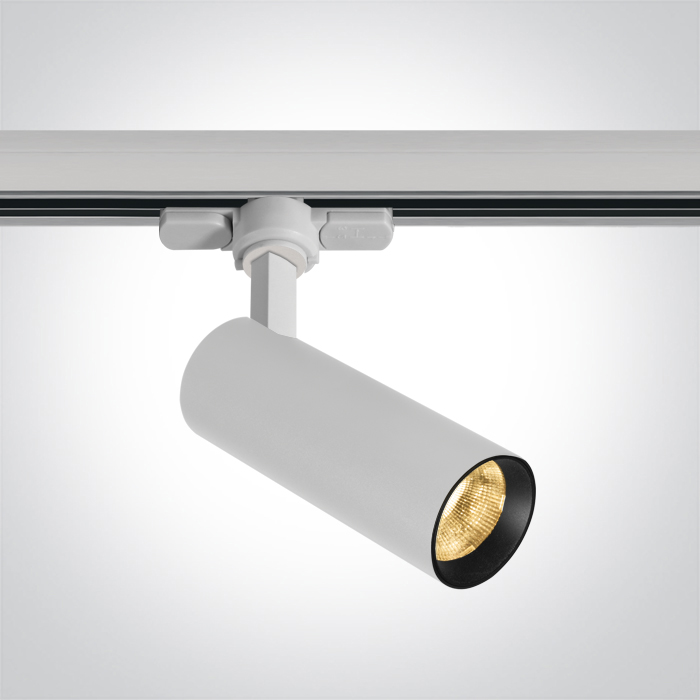

09 Track Lights > The COB Cylinder Track Light
65642AT/W/W
10W track spot with COB LED, ideal for
shops and showrooms.
Supplied with electronic high frequency control driver as standard.
Complies with standard EN60598-1 and any other specific standards.
Supplied with electronic high frequency control driver as standard.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
09 Track Lights
Family
The COB Cylinder Track Light
Order Code
65642AT/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
147mm
Diameter
55mm
Track mounted
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
250mA
Voltage
38V
Safety Class
Power (Watts)
9,5W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Sanan
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
6-10W
Power Factor
0,9
Constant Current
Yes
250mA
25-40V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
50°C
Operating Temp
80°C
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
900lm
Light Efficiency
100lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Packing Info
Box Length
22cm
Box Width
8,5cm
Box Height
8,5cm
Box Weight
0.500kg
Pcs/Carton
24
Barcode
5291889053866
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Average Lifetime
30000hours
Wee Directive
Yes
Year in which the CE mark was affixed
17
