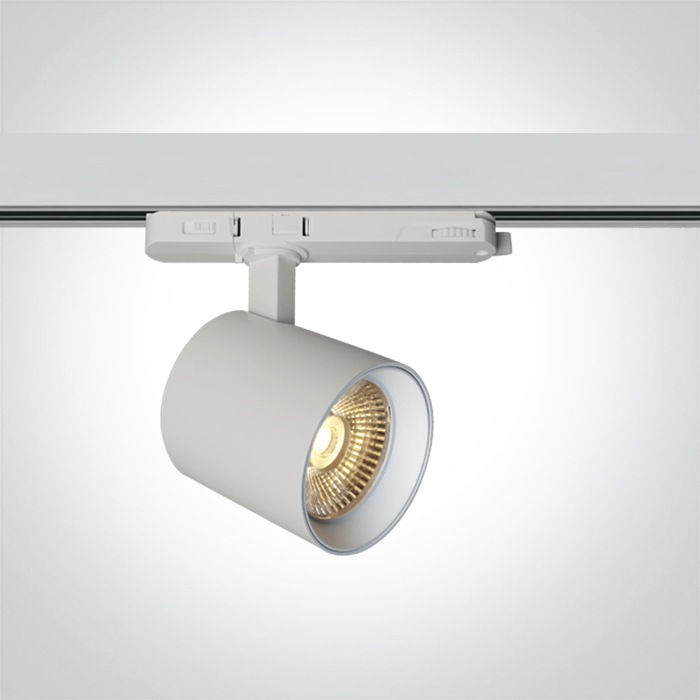

08 Track Lights > Large Cylinder Track Light PV & CCT V
65634BT/W/V
20W COB LED CCT and Power variable track spot, IP20.
Supplied with power variable driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with power variable driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
08 Track Lights
Family
Large Cylinder Track Light PV & CCT V
Order Code
65634BT/W/V
Colour
White
Material
Aluminium
Shape
Circular
Height
87mm
Diameter
80mm
Track mounted
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W-15W-20W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Light Source
LED built in
LED Type
COB
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Dimmable
No
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
2200lm@20W
Light Efficiency
110
CRI
90
Beam Angle
38°
Illumination Diagram
Packing Info
Pcs/Carton
12
Barcode
5291889092605
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
