08 Track Lights > The COB Track Light Range Aluminium

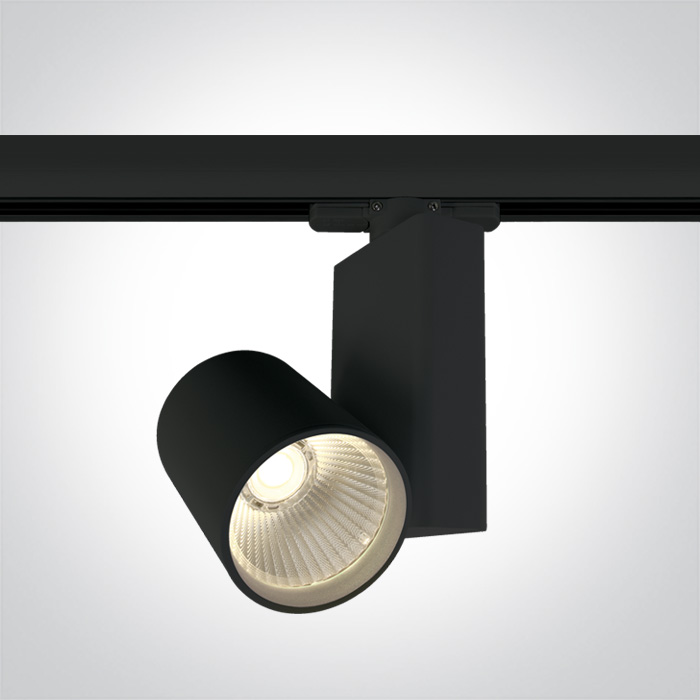

65611NT/B/W
15W track spot with COB LED, ideal for
shops and showrooms.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
08 Track Lights
Family
The COB Track Light Range Aluminium
Order Code
65611NT/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
110mm
Diameter
80mm
Track mounted
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
15W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
400mA
Voltage
36V
Safety Class
Power (Watts)
14,4W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Sanan
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
10-16W
Power Factor
0,9
Constant Current
Yes
400mA
25-40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
1200lm
Light Efficiency
80lm/W
CRI
80
Beam Angle
38°
Illumination Diagram
Packing Info
Box Length
25cm
Box Width
13cm
Box Height
10cm
Box Weight
0.790kg
Pcs/Carton
10
Barcode
5291889057857
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
