08 Track Lights > The COB Dark Light Range

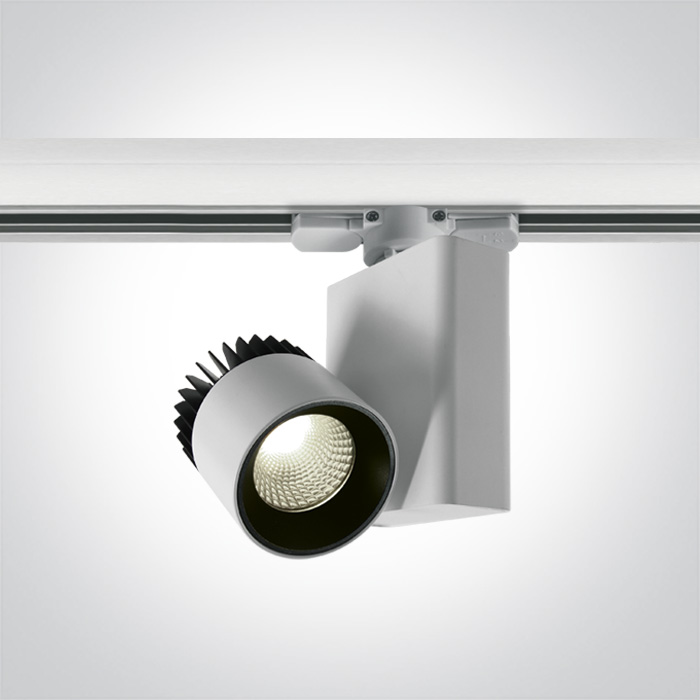

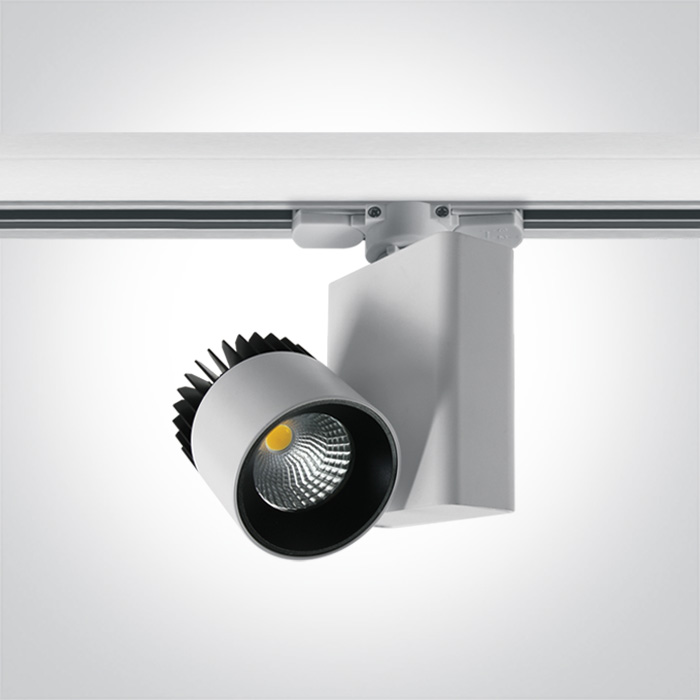

65610AT/W/C
10W COB LED track spot with, ideal for
shops and showrooms.
Supplied with electronic high frequency control driver as standard.
Complies with standard EN60598-1 and any other specific standards.
Supplied with electronic high frequency control driver as standard.
Complies with standard EN60598-1 and any other specific standards.

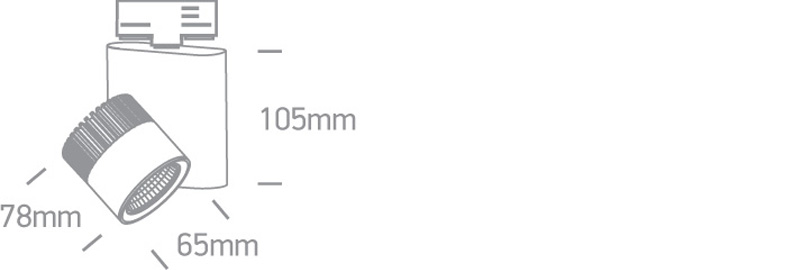

Dimensions
Downloads
Physical Specification
Item Group
08 Track Lights
Family
The COB Dark Light Range
Order Code
65610AT/W/C
Colour
White
Material
Aluminium
Shape
Circular
Height
78mm
Diameter
65mm
Track mounted
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
30V
Safety Class
Power (Watts)
9W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Sanan
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
8-12,5W
Power Factor
0,5
Constant Current
Yes
300mA
27-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
4000K
Lumen Output
800lm
Light Efficiency
80lm/W
CRI
80
Beam Angle
38°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
11,5cm
Box Width
10cm
Box Height
16,5cm
Box Weight
0.610kg
Pcs/Carton
20
Barcode
5291889047513
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
