08 Track Lights > The COB Cylinder Track Light PV & CCT V

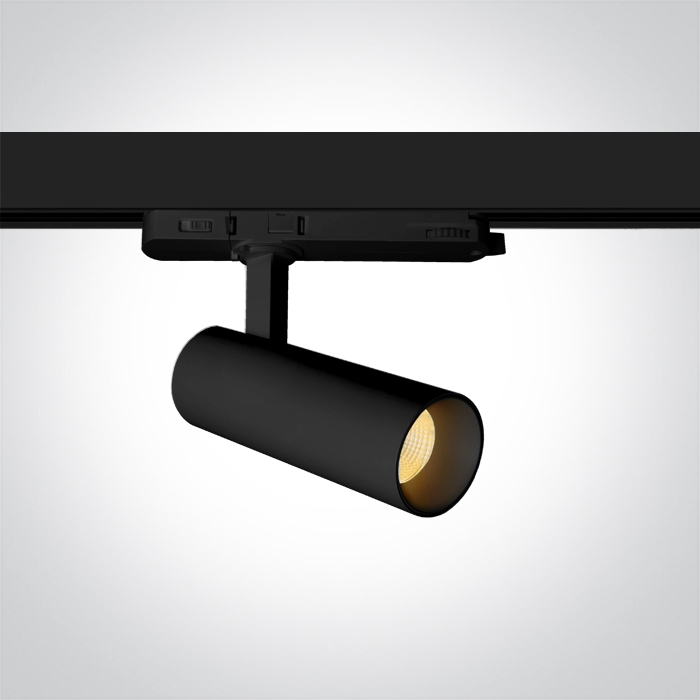

65606AT/B/V
10W COB LED CCT variable track spot, IP20.
Supplied with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.

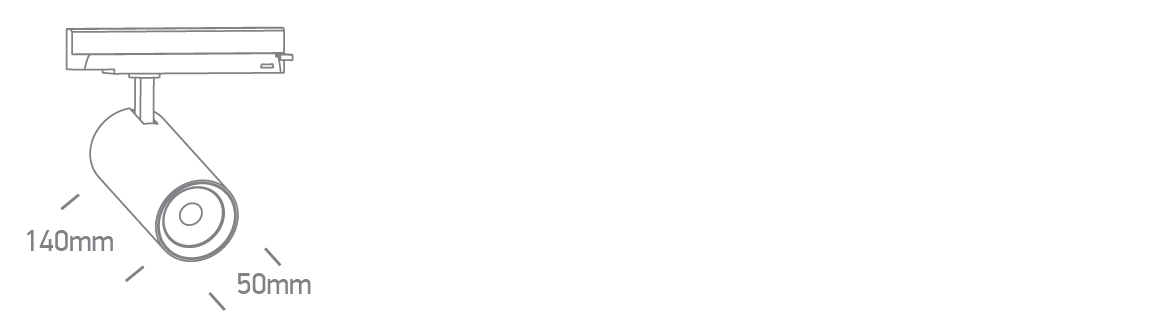

Dimensions
Downloads
Physical Specification
Item Group
08 Track Lights
Family
The COB Cylinder Track Light PV & CCT V
Order Code
65606AT/B/V
Colour
Black
Material
Aluminium
Shape
Circular
Height
140mm
Diameter
50mm
Track mounted
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Light Source
LED built in
LED Type
COB
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Dimmable
No
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
1000lm
Light Efficiency
100
CRI
90
Beam Angle
38°
Illumination Diagram
Packing Info
Pcs/Carton
18
Barcode
5291889092513
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
