08 Track Lights > Mirror Square Track Lights Die cast

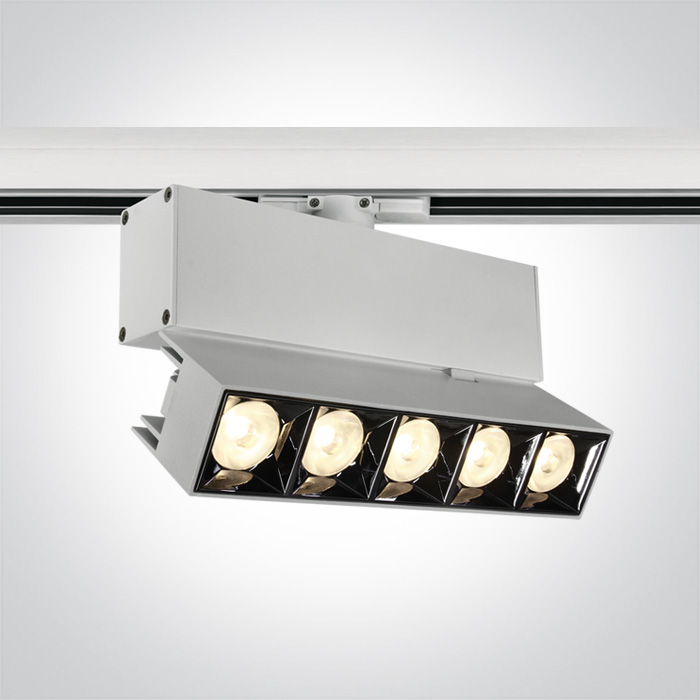

65506BT/W/W
20W track spot with COB LED.
Complete with 500mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 500mA driver.
Complies with standard EN60598-1 and any other specific standards.

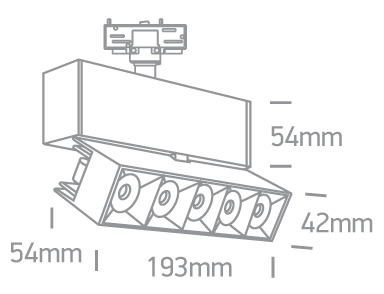

Dimensions
Downloads
Physical Specification
Item Group
08 Track Lights
Family
Mirror Square Track Lights Die cast
Order Code
65506BT/W/W
Colour
White
Material
Die Cast
Shape
Rectangular
Length
54mm
Width
42mm
Height
193mm
Track mounted
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
38V
Power (Watts)
19W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
LED Number
5
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
12,5-20W
Power Factor
0,9
Constant Current
Yes
500mA
25-40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
1600lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Packing Info
Box Length
18,5cm
Box Width
19,6cm
Box Height
4,5cm
Box Weight
0.815kg
Pcs/Carton
20
Barcode
5291889064633
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
