08 Track Lights > Mirror Square Track Lights Die cast
65306BT/B/W

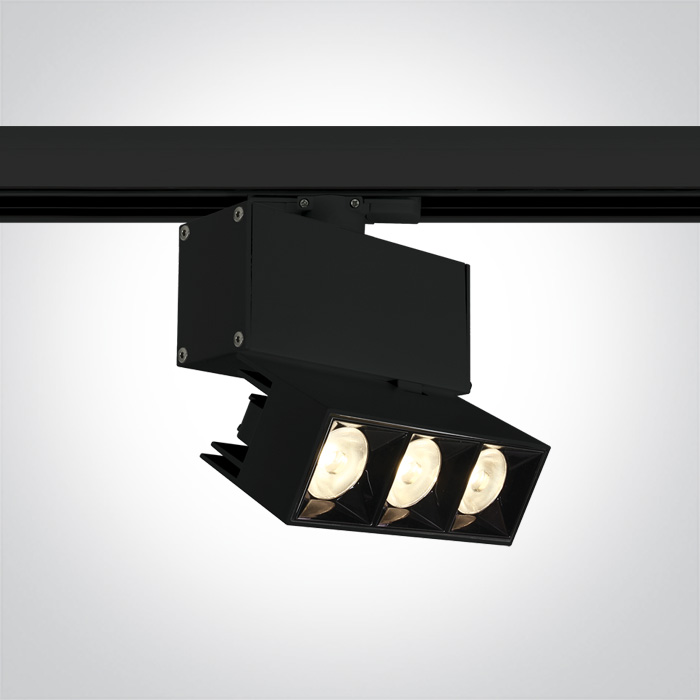

12W track spot with COB LED.
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 300mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
08 Track Lights
Family
Mirror Square Track Lights Die cast
Order Code
65306BT/B/W
Colour
Black
Material
Die Cast
Shape
Rectangular
Length
54mm
Width
42mm
Height
118mm
Track mounted
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
38V
Power (Watts)
10,4W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
LED Number
3
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
7,5-12,4W
Power Factor
0,9
Constant Current
Yes
300mA
25-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
960lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Packing Info
Box Length
18,5cm
Box Width
12,3cm
Box Height
4,5cm
Box Weight
0.543kg
Pcs/Carton
30
Barcode
5291889064626
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
