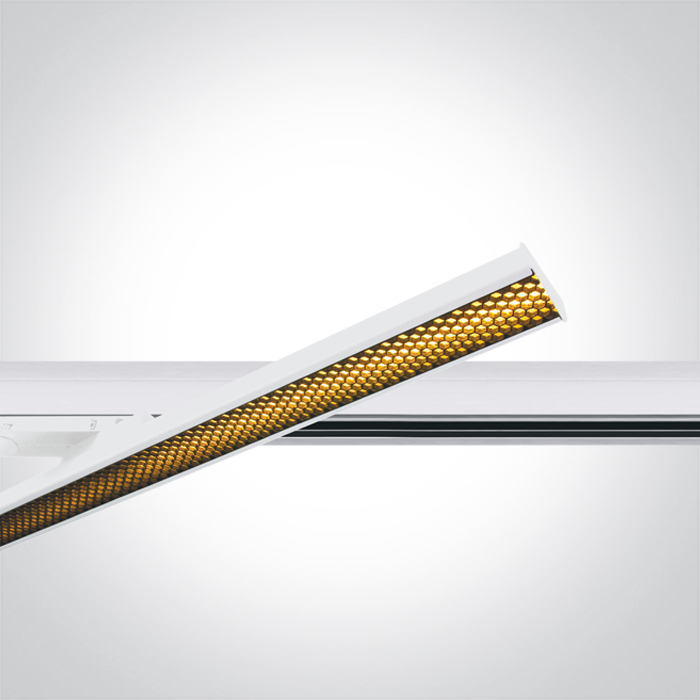

08 Track Lights > Linear Track Lights CCT V
65172AT/W/V
CCT Variable LED Linear track light, high lumen output ideal for shops and
showrooms.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
.jpg){kind=small}
Physical Specification
Item Group
08 Track Lights
Family
Linear Track Lights CCT V
Order Code
65172AT/W/V
Colour
White
Material
Aluminium
Diffuser Material
Plastic
Shape
Rectangular
Length
590mm
Width
45mm
Height
30mm
Track mounted
Yes
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
30W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
750mA
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Osram
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
6,75W-30W
Power Factor
0,9
Constant Current
Yes
750mA
9-40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
2700K-3200K-4000K
Lumen Output
3600lm (Without Honeycomb)
Light Efficiency
120lm/W
CRI
90
Beam Angle
120
Illumination Diagram
Packing Info
Box Weight
0.640kg
Pcs/Carton
20
Barcode
5291889078838
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
23
