08 Track Lights > High Power Linear Track Light
65170BT/B/W

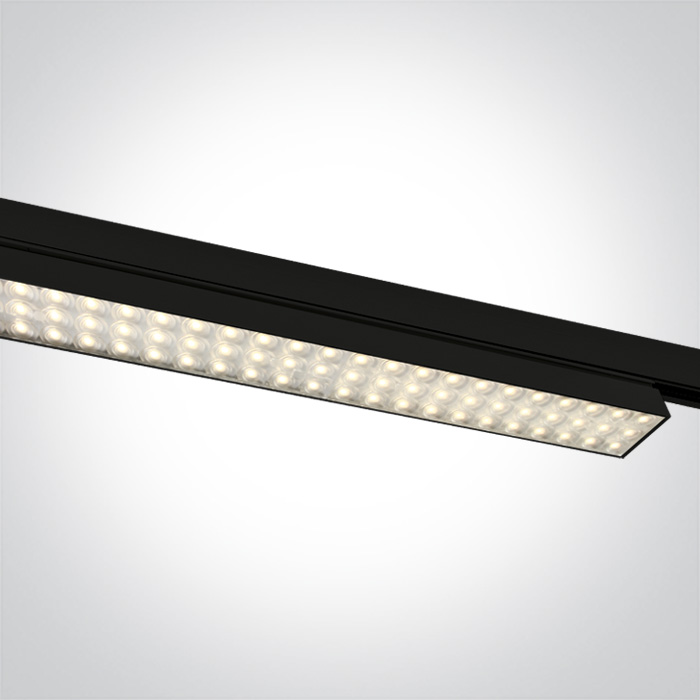

60W SMD LED track light.
Complete with 1500mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 1500mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
08 Track Lights
Family
High Power Linear Track Light
Order Code
65170BT/B/W
Colour
Black
Material
Aluminium
Shape
Rectangular
Length
1150mm
Width
40mm
Height
64mm
Track mounted
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
60W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
1500mA
Voltage
39V
Power (Watts)
58,5W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 3030
LED Brand
Epistar
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
45-63W
Power Factor
0,9
Constant Current
Yes
1500mA
30-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
5400lm
Light Efficiency
90lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
2.400kg
Pcs/Carton
12
Barcode
5291889068051
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
