08 Track Lights > The COB Compact Cylinder Range
65108AT/B/W

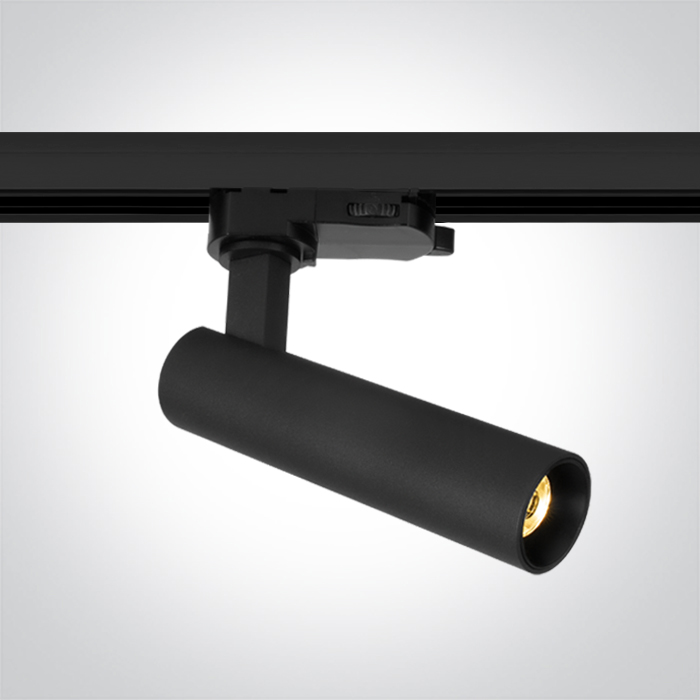

9W COB Track Spot, ideal for
shops and showrooms.
Complete with 200mA dimmable driver.
Complete with 200mA dimmable driver.
Dimensions
Downloads
Physical Specification
Item Group
08 Track Lights
Family
The COB Compact Cylinder Range
Order Code
65108AT/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
133mm
Diameter
33mm
Track mounted
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
9W
IP Rating
IP20
Light Source
LED built in
Dimmable
Yes
Dimmer type
Triac
Fitting
Input Type
Constant Current
Input Current
200mA
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Citizen
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power Factor
0,9
Constant Current
Yes
Output
200mA
IP Rating
IP20
Safety Class
Dimmable
Yes
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
750lm
Light Efficiency
83lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.250kg
Pcs/Carton
30
Barcode
5291889078395
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
23
