08 Track Lights > Linear Box Lines CCT V

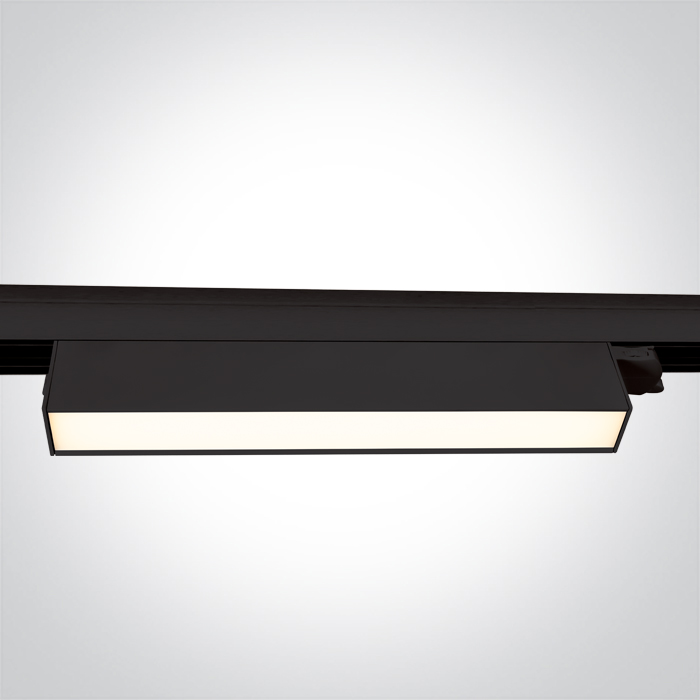

65028AT/B/V
CCT Variable LED Linear track light, high lumen output ideal for shops and
showrooms.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
08 Track Lights
Family
Linear Box Lines CCT V
Order Code
65028AT/B/V
Colour
Black
Material
Aluminium
Diffuser Material
PC
Shape
Rectangular
Length
324mm
Width
38mm
Height
55mm
Track mounted
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
24W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
600mA
IP Rating
IP20
Light Source
LED built in
LED Brand
Bridgelux
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power Factor
0,9
Constant Current
Yes
600mA
40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K-4200K-6500K
Lumen Output
2400lm
Light Efficiency
100lm/W
CRI
90
Beam Angle
90
Illumination Diagram
Packing Info
Box Weight
0.710kg
Pcs/Carton
20
Barcode
5291889078432
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Average Lifetime
50000Hrs
Wee Directive
Yes
Year in which the CE mark was affixed
23
