09 Track Lights > LED Linear Track Light
65025T/B/W

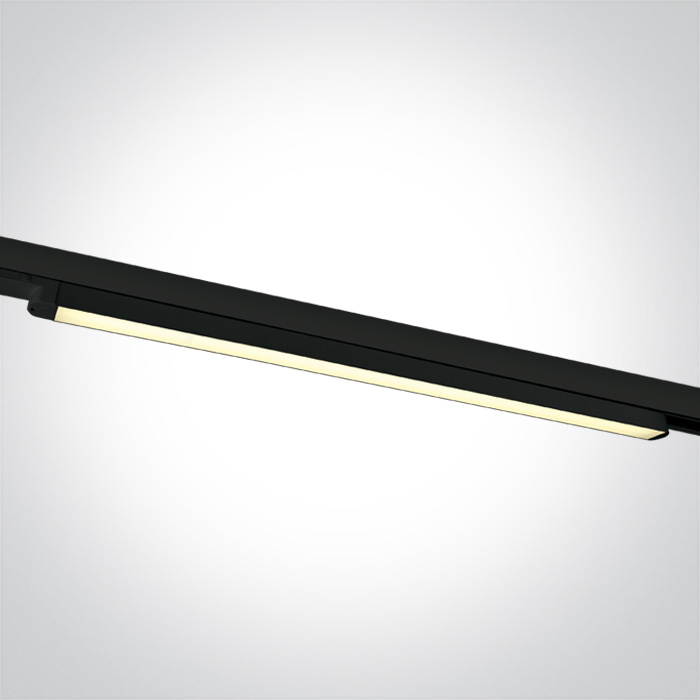

LED Linear track light, high lumen output ideal for shops and
showrooms.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
09 Track Lights
Family
LED Linear Track Light
Order Code
65025T/B/W
Colour
Black
Material
Aluminium
Diffuser Material
PC
Shape
Rectangular
Length
1210mm
Width
30mm
Height
30mm
Track mounted
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
25W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Fitting
Input Type
Constant Current
Input Current
600mA
Voltage
40V
Power (Watts)
24W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
18-24W
Power Factor
0,9
Constant Current
Yes
600mA
30-40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
2500lm
Light Efficiency
100lm/W
CRI
80
Beam Angle
110°
Illumination Diagram
Packing Info
Box Weight
1.083kg
Pcs/Carton
12
Barcode
5291889061960
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
